XNTEL XN101 – IP Phone

Professional SIP Communication for Modern Businesses

The XNTEL XN101 IP Phone is a reliable, business-grade SIP phone designed to deliver clear, efficient, and flexible communication for modern workplaces. With 2 SIP accounts, 5 programmable keys, HD voice support, dual 10/100 Mbps Ethernet ports, and comprehensive call management features, the XN101 combines essential business communication capabilities with a user-friendly design.

Built for seamless day-to-day communication, the XN101 supports features such as call transfer, call forwarding, call waiting, 3-way conferencing, speed dial, voicemail, call history, and multiple phonebook options. Its programmable keys provide quick access to frequently used functions, helping users manage calls more efficiently.

The XN101 supports both standard SIP environments and IP-PBX integration, making it suitable for offices, enterprises, call-handling environments, and other professional communication setups. With optional PoE, auto-provisioning, secure communication protocols, and flexible network configuration, it also simplifies deployment and management for business networks.

VoIP Call
Forward

Web User
Interface

Phone
Book

3 Way
Conference

IP Phone XN101 - Transform your business communication

Support 2 lines
Support 38.5° demountable bracket
Comprehensive features for unified communication
Support 5 programmable keys (2 Line keys, Up & Down keys, Redial key)
Support multilanguage (English, French, Russian, Italian, etc.)
2*10/100M Ethernet ports, POE is optional
Auto-provision, HTTP/HTTPS/TFTP/FTP

The XNTEL XN101 is a high-end Standard SIP phone designed for contemporary corporate communication. It delivers 5 programmable keys, intuitive call controls, HD voice clarity, and multi-language support. Its ergonomic design offers a seamless user experience across standard third-party SIP systems and dedicated IP-PBX platforms.

REQUEST A QUOTE

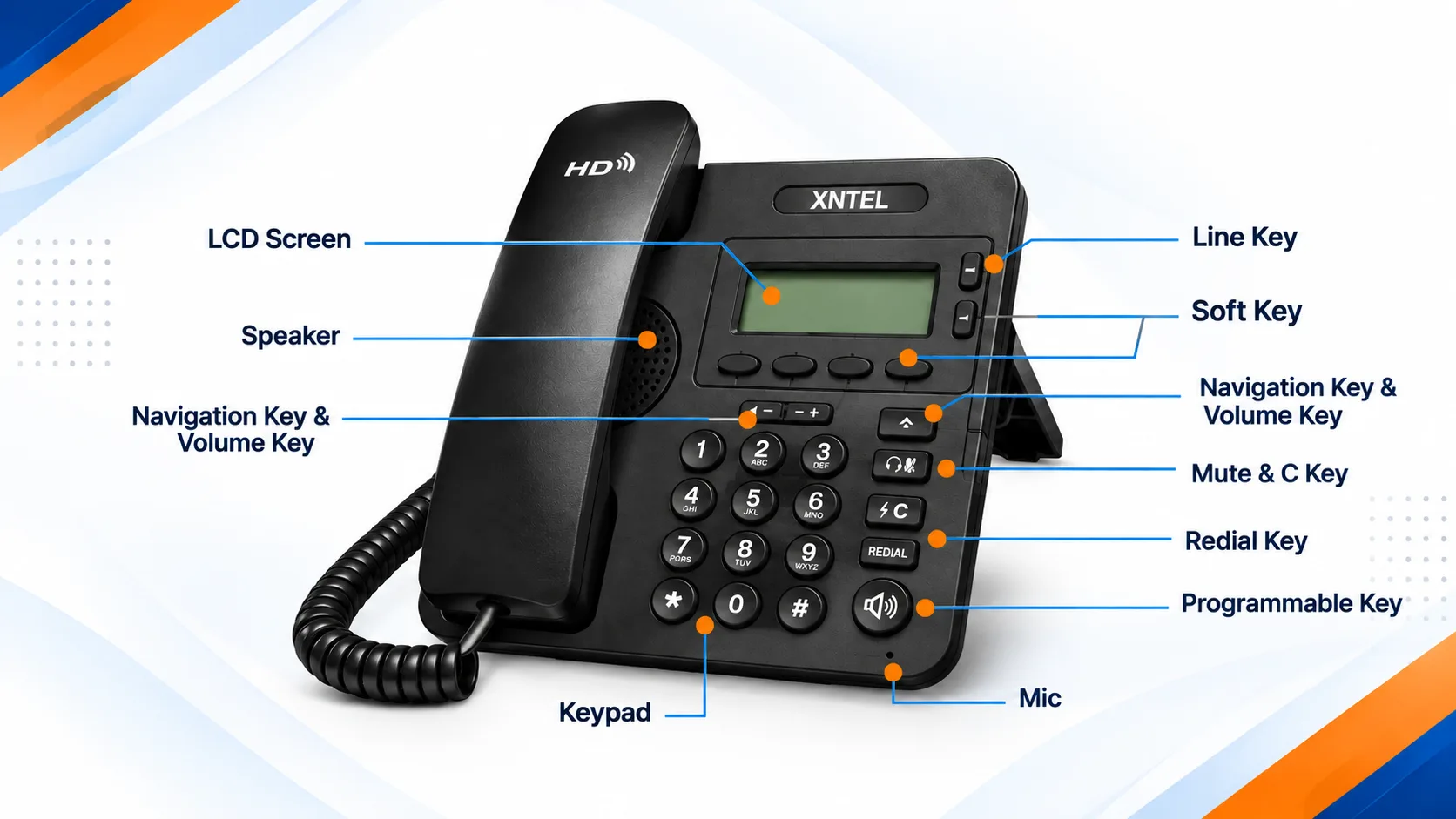

Phone User Interface

The main hardware components of the XN101 IP Phone are the LCD screen and the keypad

Hardware component instructions :

S.No.	Item	Description
1.	LCD Screen.	Displayed information about calls, messages, soft keys, time, date and other relevant data: Call information — caller ID, call duration Icons (e.g. ) Missed calls or second incoming caller's information Time and date
2.	Line Key	Red, flashing: Incoming call Red, steady: Pick up but not on communication Green, steady: On communication Green, flashing: On hold Light off: Idle NOTE: Light yellow steady: Under the idle status, the light will on when: Missed Call, Transfer, DND, Message, Mute, SIP-Unregistered.
3.	Soft Key	Labels automatically to identify their context-sensitive features
4.	Navigation Key & Volume Key	In the idle status, press UP or DOWN key can check the call log: UP: Open the "All CONTACT LOG", DOWN: Open the "MISSED CALL", RIGHT and LEFT can check other list, like "RECEIVED CALL\DAIL CALL". In the idle or talking status, press RIGHT or LEFT key can adjust the volume.
5.	Mute & C Key	Cancels actions or rejects an incoming call, and the other feature: In the idle: Open the "Phone Status". Diagnosis: Press and hold 3 second to open "Hardware Diagnosis". MUTE: "MUTE" feature is enabled if you press it while the conversation making on the phone.
6.	Redial Key	Dial the latest number.
7.	Programmable Key	In the idle status, press and hold 3s will enter programmable function, the default password is empty: Line 1 & 2: press and hold can quickly enter account setting, If you want set it to another function, you need to login into website to change it. Navigation key UP & DOWN, Redial key press and hold can quickly enter programmable key setting function, they can change to `Redial\DND\Personal Phonebook\Enterprise Phonebook\LDAP\Directory\Speed Dial\Call History\Received Calls\Dialed Calls\Main Menu\New Message\Forwarded Calls\View Status\Enable/Disable SIP Account\Default`. NOTE: MUTE&C key isn't support programmable function.
8.	Speaker Key	Toggles the hands-free speaker phone mode. Press and hold can change to headset mode
9.	MIC	High sensitive pickup Mic.
10.	Keypad.	Provides the digits, letters and special characters in context-sensitive applications.
11.	Speaker	HD Speaker

Technical Specification

Comprehensive technical details, network parameters, and physical features

Phone Features	2 SIP accounts, MWI(Line1) Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask) Caller ID display, Redial, Mute, DND Auto-answer, 3-way conferencing Speed dial, SMS, Voicemail, Tone scheme, Volume control Direct IP call without SIP proxy Ring tone selection/import/delete Black list, Hand-free indicator. Call history: dialed/received/missed; Soft keys programmable, Supports PC control Multi-Language: Chinese, English, French, Russian, Italian, Polish, Portuguesa, Portuguesa-Brasil, Spanish, Turkish
Advanced Features	5 programmable keys XML Phone Book search and input & output Enterprise phone book(800 entries) Personal Phonebook(300 entries) LDAP phone book
IP PBX System Integration	Busy lamp field (BLF), BLF list Bridged line appearance (BLA) DND & Forward synchronization Intercom, Paging, Music on hold Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection Network conference, Distinctive ring tone
Codes and Voice Features	Wideband Codec: G.722 Narrowband codec: G.711μ/A, G.726, G.729AB, iLBC VAD, CNG, AEC, AGC, Full-duplex
Security	VLAN QoS (802.1pq), SRTP Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess Secure configuration file via AES encryption Encryption for configuration file Phone lock for personal privacy protection Admin/User 2-level configuration mode, LLDP, CDP L2TP VPN tunneling protocol - added
Network Features	SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; SRTP voice encryption(RFC3711) Redundant server support NAT Traversal: STUN mode DTMF: In-Band, RFC2833, SIP Info, Auto HTTP Web Management IP Assignment: Static/DHCP/PPPoE Bridge/Router mode for PC port TFTP/DHCP/PPPoE client Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
Management	Auto-provision via FTP/TFTP/HTTP/HTTPS Configuration: browser/phone/auto-provision Trace package and system log export
Optional Feature	TR069, IPv6, HTTPS web management, 802.1x, OPEN VPN
Physical Features	12864 graphic LCD with back light 25 keys, including 5 programmable keys, 2 LEDs: 2 account lights, including MWI(L1) 1* RJ9 handset port 1* RJ9 headset port 2xRJ45 10/100M Ethernet ports Power adapter: AC 100~240V input and DC 5V/1A output POE, IEEE 802.3af, class 0 (Option) Power consumption: 1.5W Net weight: 0.62kg Dimension: 180x157x33mm Operating humidity: 10~95% Storage temperature: up to 60°C
Package Features	Qty/CTN: 20 PCS
Compatible with the platform	Avaya, ZTE, Asterisk, Cisco, metaswitch, Huawei, NEC
