UCM 200 DS – 16 Ports

FXS VoIP Gateway XNTEL UCM200-D16S Series

Scalable Analog-to-IP Connectivity for Modern Business Communication

The XNTEL UCM200-D16S is a 16-port FXS VoIP Gateway designed to connect traditional analog phones and fax machines with modern IP-PBX and SIP-based communication systems. It enables businesses to retain their existing analog telephony infrastructure while transitioning to reliable and scalable VoIP communication.

With 16 FXS ports, SIP/TDM signaling, flexible call routing, number manipulation, call forwarding, call waiting, Caller ID, auto dial, echo cancellation, fax support, and group ringing, the UCM200-D16S provides comprehensive connectivity for demanding business environments.

Its 16-session capacity, SIP compatibility, and centralized management support make it suitable for SMBs, offices, contact centers, and multi-branch organizations requiring efficient integration between analog extensions and IP networks.

Advanced Search

Easy to Install

Clear
Recording

Online
Monitoring

FXS VOIP GATEWAY - XNTEL UCM200-D16S SERIES

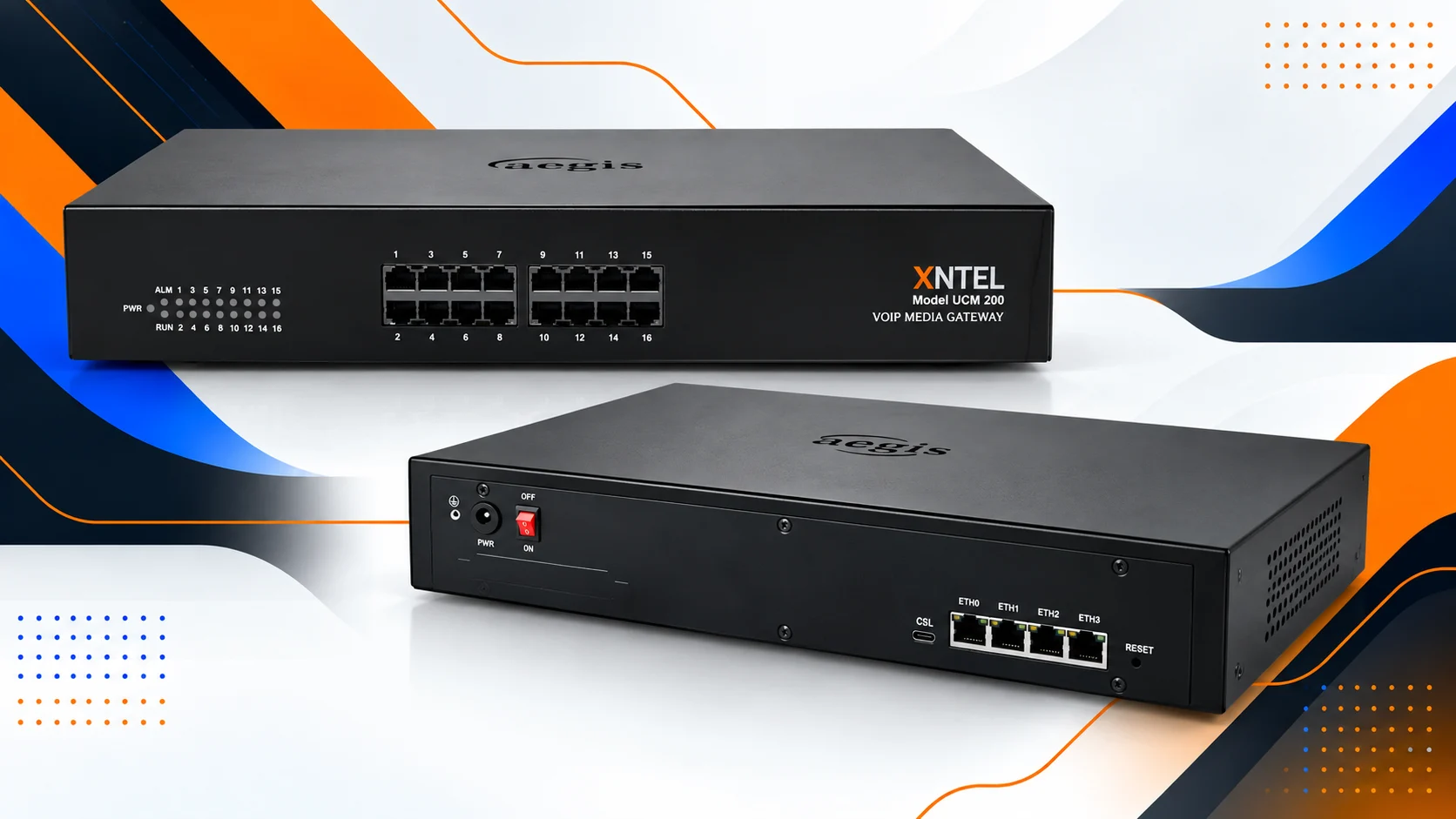

UCM200-D16S Series - VoIP FXS Analog Gateway

Easy integration with existing telephony interfaces
VoIP connectivity with high performance for SMBs
Flexible Call Routing
Place and receive IP calls from analog extensions
Fully compliant with SIP, also features flexible calling rules.
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Easy to install, configure and maintain

REQUEST A QUOTE

ANALOG FXS GATEWAY - XNTEL UCM200-D16S SERIES

Aegis Informatics is The Most Professional sip server Manufacture in Asia. We can provide IP PBX Phone System for different situations. FXS gateways are used to connect traditional analog phones and fax machines to a VoIP phone system. FXO gateways expand FXO ports of IP PBX to connect more PSTN lines, making and receiving calls through PSTN channels, even when power is lost or the internet connectivity is down.

By seamlessly connecting your analog phones, fax machines, and legacy PBX with IP networks and IP phone networks, Aegis XNTEL offers reliable and reasonably priced analog FXO-FXS VoIP gateway that will maximize the return on your current investment in telephony infrastructure and expedite VoIP conversion. The FXS VoIP Gateway UCM200-D16S model of the Aegis XNTEL series offers a comprehensive array of sturdy gateways, ranging from one to four FXS ports and four SIP channels. Additionally, the UCM200S analog gateway empowers contact centers and multi-branch businesses with robust, adaptable, and cost-effective VoIP solutions.

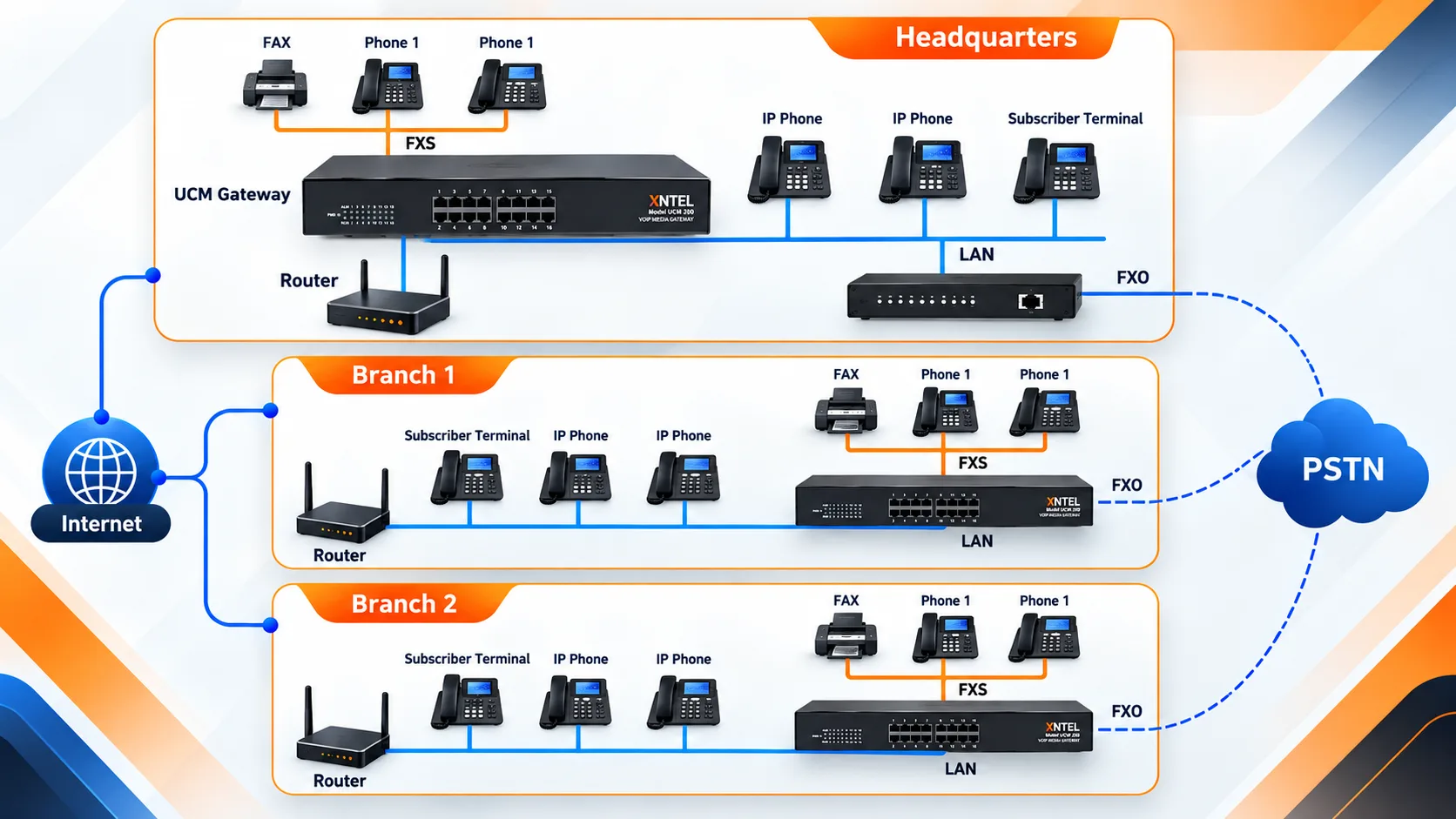

Aegis XNTEL UCM200-D16S Series Multi-Branch Architecture Diagram

FXS VoIP Gateway Features

FXS VoIP Gateway Features :
TDM Call	Call initiated from TDM to IP, via routing and number manipulation to obtain the called IP address.
IP Call	Call initiated from IP to TDM, via routing and number manipulation to obtain the call destination.
Number Manipulation	Peels off some digits of a phone number from left/right, or adds a prefix/suffix to a phone number.
Call Forward	Three options available: Unconditional, Busy and No Reply.
Call Waiting	When an FXS channel receives another call while it is in conversation, it will have the newly received call keep waiting. Once the current call is finished, the new one will ring the FXS channel and wait for its answer.
Auto Dial	If there is no dialing operation in a designated time period after pickup, the preset auto dial number will be called.
Do Not Disturb	Rejects all the incoming calls to the channel.
CID	Displays the CallerID.
Echo Cancellation	Provides the echo cancellation feature for a call conversation over the FXS/FXO channel.
TDM/VoIP Routing	Sets a routing path: from IP to TDM or from TDM to IP.
Fax	Provides multiple fax parameters: fax mode, maximum fax rate, fax train mode, error correction mode, etc.
Communication without Power	Enable a connection of the station which is linked with the FXS port and the trunk which is linked with the FXO port to keep the calls between the FXS port and PSTN uninterrupted during power outage.
Communication without Network	Automatically routes a call to the proper port according to the configuration in case of network failure or call timeout.
Send Polarity Reversal Signal	Sends the polarity reversal signal to a corresponding FXS channel when the called party pick-up behavior is detected.
Detect Polarity Reversal Signal	Turns a corresponding channel into the talking state when the FXO port detects the polarity reversal signal.
Simultaneous Register to Multiple Servers	Registers the gateway to a master registrar server and a spare registrar server simultaneously.
IMS Network	Registers the gateway to a server under IMS network.
SIP Station	Supports a SIP terminal to be registered to the gateway and become a SIP station.
Group Ringing	Rings all the idle FXS ports in a port group.
Ringing by Turns	Rings the FXS ports in a port group by turns according to the Rule for Ringing by Turns.
Preemptive Answer	When a channel in a port group is ringing, another channel in the same port group can press the preemptive answer keyboard shortcut to transfer the call from the ringing channel to the current channel.
Centralized Manage	The gateway can register to XNTEL DCMS and accept the management of the platform.

Technical Specification

Technical Specification :
Main Model No.	UCM200S UCM200-D4S
Sessions	16
Telephony Ports	16
Interface	RJ11
LAN	1*10/100Mbps
Console Port	N/A
Signaling	SIP/TDM
Power Supply	Single
Power Requirements	12V DC
Codecs	G.711/729/723/722/iLBC/AMR
DTMF Mode	RFC2833, SIP Info, In-band
Fax	T.38 and Pass-through
QoS	DiffServ, ToS, 802.1 P/Q VLAN tagging
Network	DHCP, PPPoE, Static Route, VLAN
Network Protocol	TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN
Management Protocol	TR-069*
Signaling	FXS Loop Start, FXS Kewl Start
Caller ID	BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
FXO Connectivity	Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Routing	Call routing(IP ↔ PSTN)
Mounting	Desktop
Dimensions HWD(mm)	22014840
Compatibility	Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide
Environment	Operating temperature range :0 to +55 °C, 8-90% relative humidity non-condensing Storage temperature range:-20 to +85 °C, 8-90% relative humidity non-condensing
Safety	Compliant with most international standards, please ask sales representatives worldwide. We would comply all new safety standard to for different regions around the world while needed.
