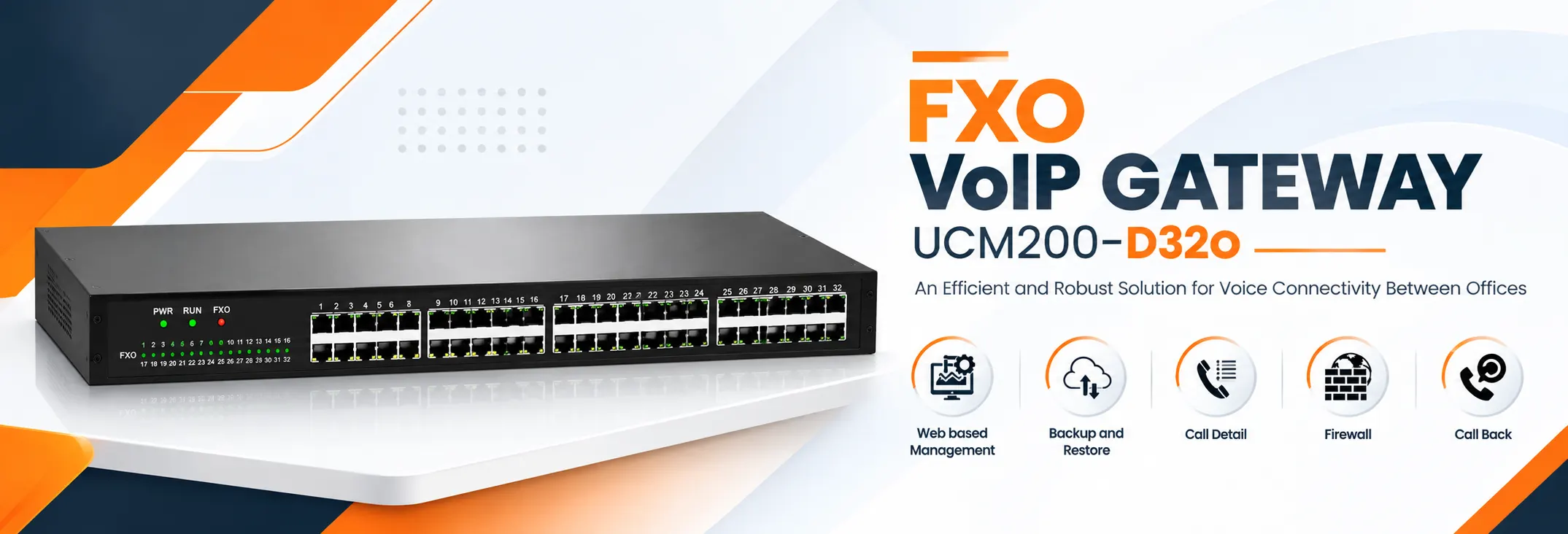

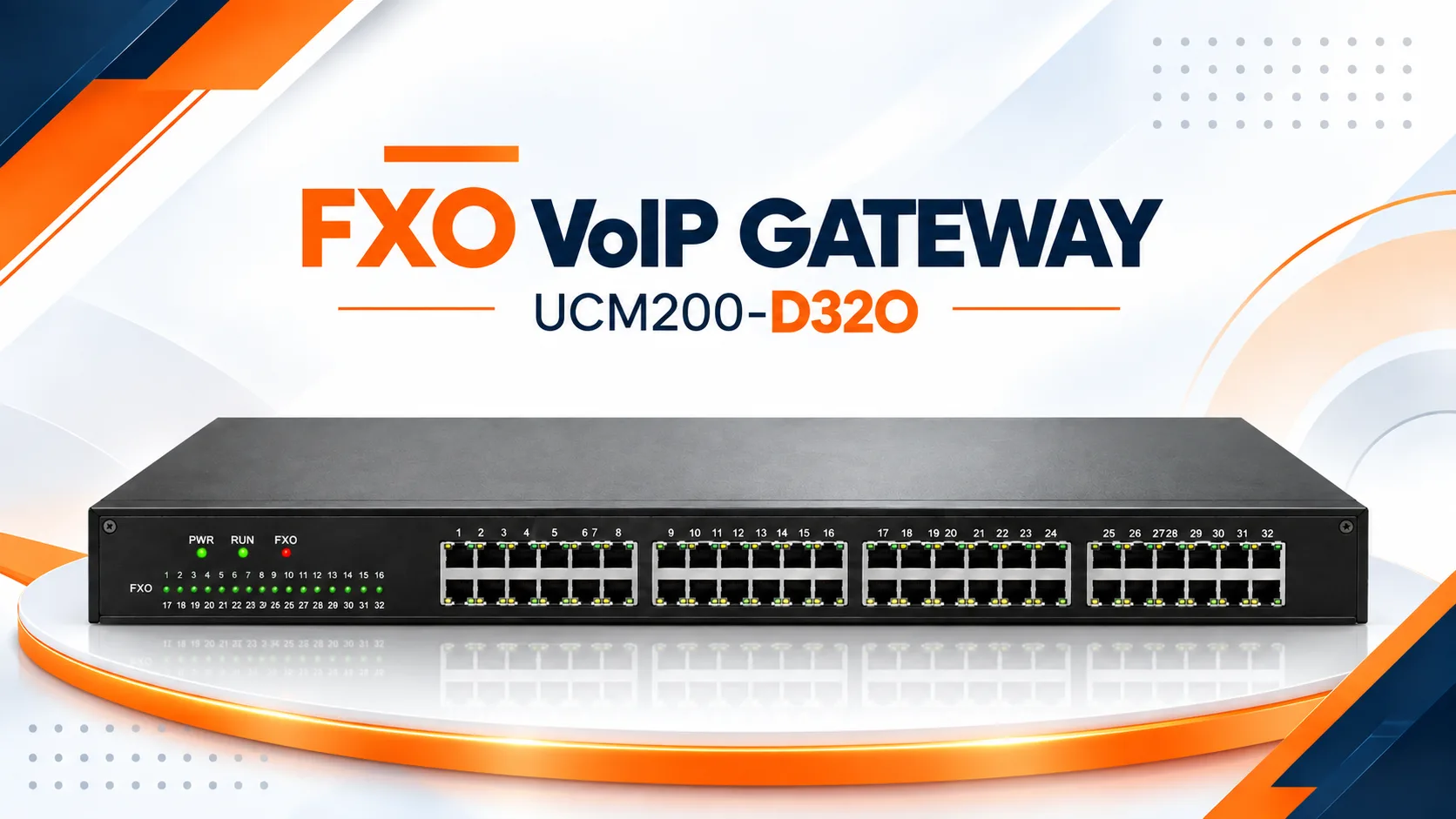

ANALOG FXS GATEWAY- XNTEL UCM200-D32O Serie
High-Density Analog Voice Connectivity for IP-PBX Networks
The XNTEL UCM200-D32O is a high-density analog VoIP gateway designed to integrate traditional telephony infrastructure with modern IP-based communication networks. The source material identifies the UCM200-D32O as an FXO VoIP Gateway, supporting connectivity between analog telephone lines, legacy PBX systems and IP networks.
With 32 telephony ports and up to 32 sessions, the UCM200-D32O is designed for larger deployments that require centralized voice connectivity. It supports SIP/TDM signaling, IP-to-PSTN routing, multiple codecs, fax transmission, flexible call routing and web-based management, making it suitable for SMBs, call centers, branch offices and enterprise communication environments.
Advanced Search
Easy to Install
Clear
Recording
Online
Monitoring
Feature Packed
A complete features set that meets all of your requirements and lowers communication costs.
user-friendly
Easy to use Web GUI and intuitive control. Effortless intallations, configure, debug and maintain.
Elevated Efficiency
Excellent voice compression using established codecs for the industry. Compatible with various IP systems
Adaptive Setting
Aegis XNTEL PBX supports standard open protocol TR-069 and PPPoE or DHCP provisioning.
- Link VoIP networks to analog phone lines or PABX extension interfaces.
- High-quality voice calls with exceptional dependability and performance.
- This creative approach is scalable to businesses of any size.
- Caller ID presentation and restriction
- Hotline extension setting
- Web-based remote administration
- Restrict unwanted calls with a list of prohibited numbers
- VoIP connectivity with high performance for SMBs
REQUEST A QUOTE
FXO VoIP Gateway Features
| Answer Detection | Attack Alert |
| Auto Provisioning with XNTEL IP-PBX | Backup and Restore |
| Call Back | Call Detail Records |
| Caller ID Display | Firewall |
| Firmware Upgrade by HTTP/TFTP | Hangup Detection |
| IP Blocklist | Nat Traversal |
| Packet Capture Tool | Programmable AC Impedance |
| System Logs | Web-based Management |
Salient Features
Fit to Diverse Applications

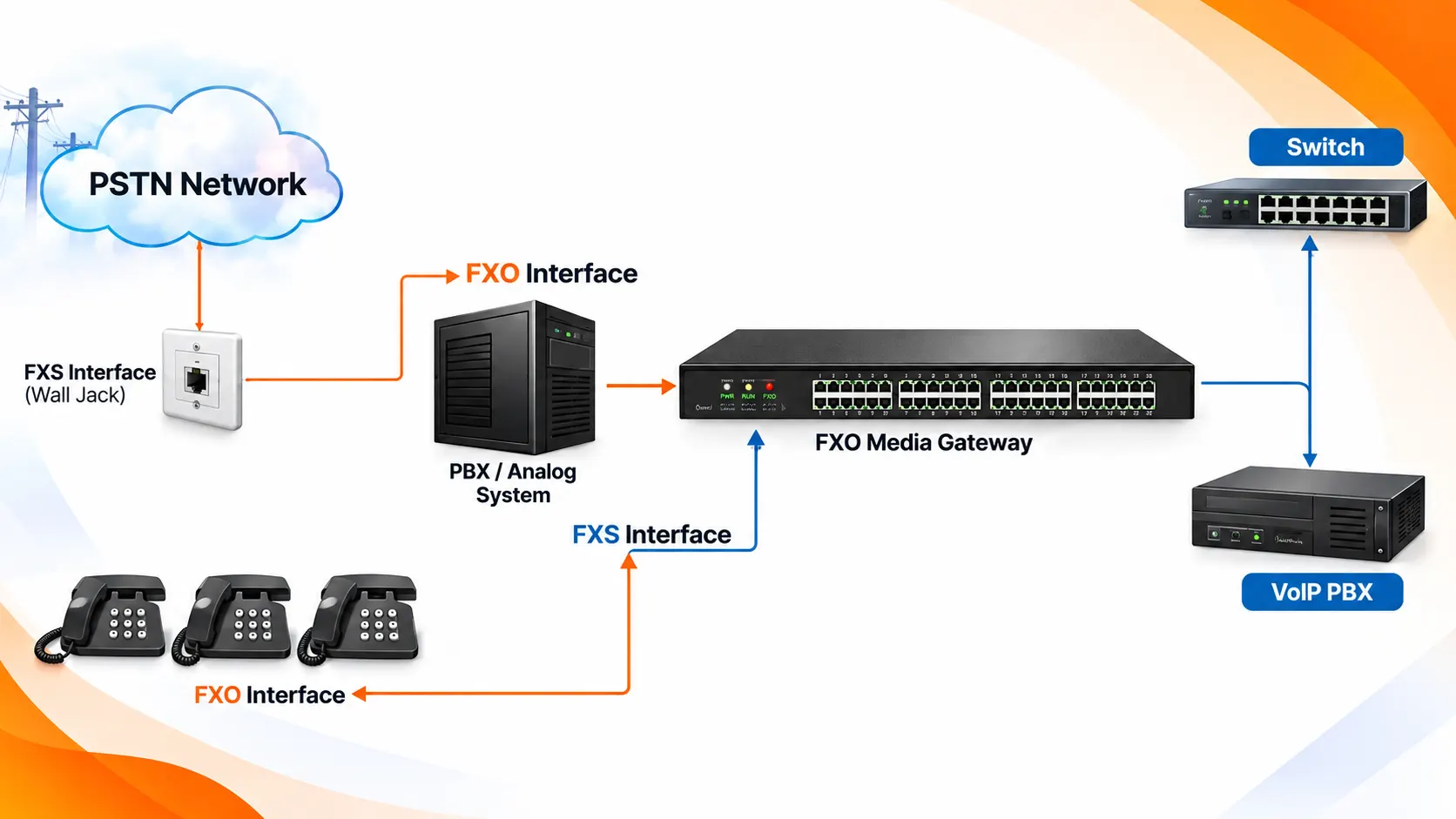

used to integrate network-hosted apps with the PBX, expand the PBX to branch offices, link IP phones to a legacy PBX, and integrate different voice and call processing capabilities in an enterprise LAN or WAN environment.
Flexible Call Routing
Calls can be routed from the switched network to a VoIP destination on the IP network, or vice versa. These call routing choices include TDM to IP or IP to TDM, including IP load balancing and IP fault tolerance.
Controlled Migration to IP
Compatible with a wide range of popular PBX manufacturers, generic FXO/FXS lines, and digital PSTN lines (compliance would be provided), protects investment in legacy telephony equipment.
User-Friendly Management
Supports configuration via serial, Telnet, and a web browser including context-sensitive help Easy to install, configure, debug, and maintain.
Enhanced Voice/Fax Processing
Supports a variety of compression algorithms, including G.711 A-law and μ-law, G.729A/B; Transcode fax from T.30 fax protocol (supporting V.17) to T.38 for transmission over a packet network.
Web Server Interface & Hot Swap
Every gateway unit comes with a web server interface that enables setup and software updates using a web browser; this feature enables the addition or removal of gateway units without affecting other gateways.
| Technical Specification : | ||||
|---|---|---|---|---|
| Main Model No. | UCM200 O | UCM200 O | UCM200 O | UCM200 O |
| CM300G-D4O | CM300G-D8O | CM300G-D16O | CM300G-D32O | |
| Sessions | 4 | 8 | 16 | 32 |
| Telephony Ports | 4 | 8 | 16 | 32 |
| Interface | RJ11 | RJ11 | RJ11, RJ21, RJ45 | RJ11, RJ21, RJ45 |
| LAN | 1*10/100Mbps | 2*10/100Mbps | ||
| Console Port | N/A | 1 | ||
| Signaling | SIP/TDM | |||
| Power Supply | Single | |||
| Power Requirements | 12V DC | AC Frequency 47 Hz to 63 Hz | ||
| Codecs | G.711/729/723/722/iLBC/AMR | |||
| DTMF Mode | RFC2833, SIP Info, In-band | |||
| Fax | T.38 and Pass-through | |||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | |||
| Network | DHCP, PPPoE, Static Route, VLAN | |||
| Network Protocol | TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN | |||
| Management Protocol | TR-069* | |||
| Signaling | FXS Loop Start, FXS Kewl Start | |||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |||
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection | |||
| Dimensions H*W*D(mm) | 220*148*40 | 440*267*44 | ||
| Routing | Call routing(IP ↔ PSTN) | |||
| Mounting | Desktop | Wall-mount | ||
| Compatibility | Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide | |||
| Environment | Operating temperature range : 0 to +55 °C, 8-90% relative humidity non-condensing Storage temperature range : 20 to +85 °C, 8-90% relative humidity non-condensing | |||
| Safety | Compliant with most international standards, please ask sales representatives worldwide. We would comply all new safety standard to for different regions around the world while needed. | |||
| EMC/EMI | Compliant with most international standards. For compliance documents, please contact sales representatives. | |||
| OAM&P | Network Time Protocol(NTP) Web User interface (WebUI) supports configuration via browser SNMP MIBs | |||
