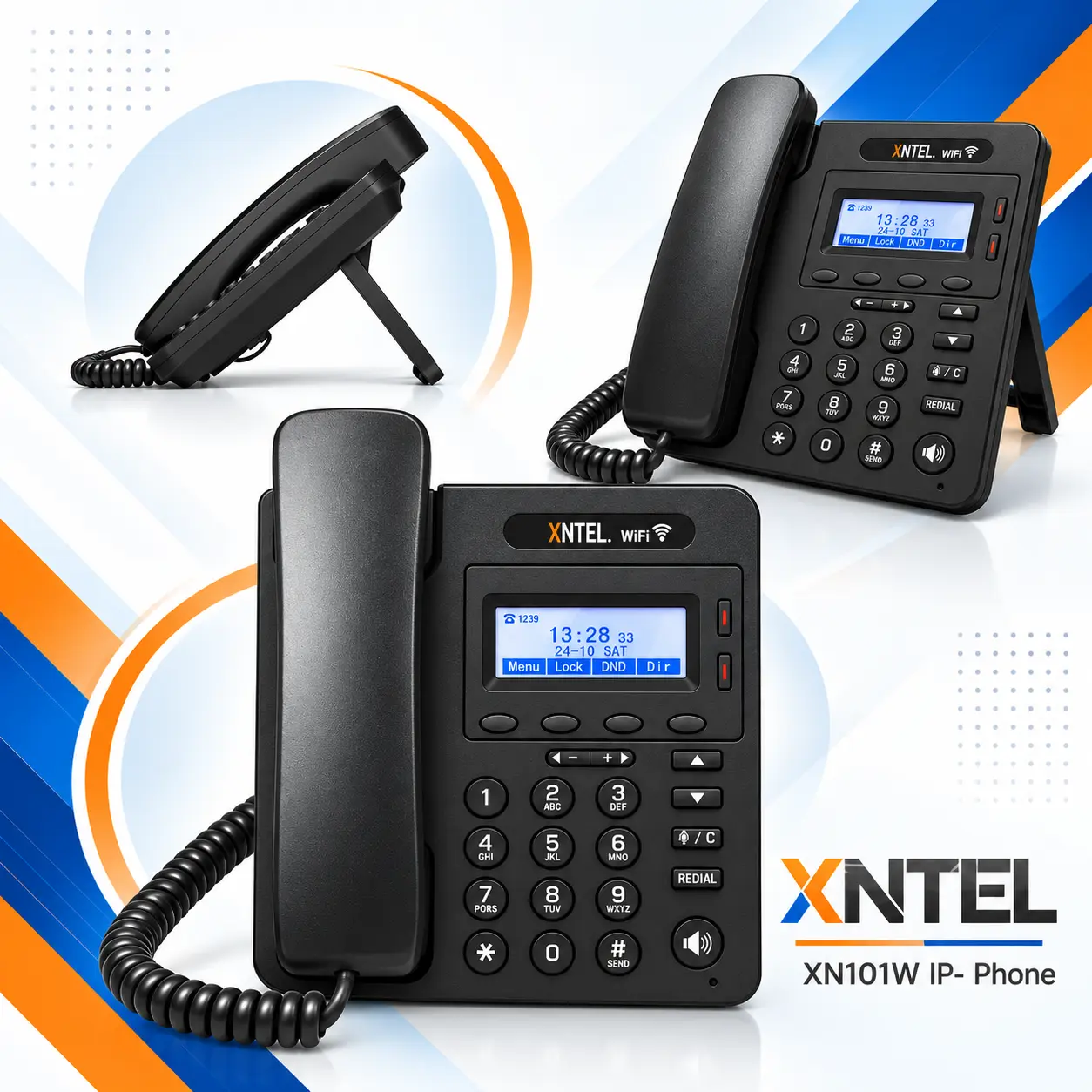

XN101W 2.4G & 5GHz WiFi – IP Phone

The XN101W WiFi IP Phone by Aegis XNTEL is a cost-effective wireless VoIP phone designed for modern business communication. This dual-band WiFi IP phone supports 2.4 GHz and 5 GHz wireless connectivity, providing flexible installation in compatible office environments. Designed for offices and small and medium-sized enterprises (SMEs), the XN101W WiFi IP Phone supports dual SIP accounts, HD voice, programmable keys, and Power over Ethernet (PoE). These features make it a practical business IP phone for compatible SIP-based communication systems. Featuring a 2.8-inch backlit display and a web-based management interface, the XN101W wireless IP phone offers convenient configuration and straightforward call management. Its combination of WiFi connectivity and essential VoIP features makes it suitable for offices, reception areas, and IP-PBX environments.

Dual-Band
Wi-Fi

2 SIP
Lines

5 Programmable
Keys

HD
Voice

XNTEL XN101W is a - Transform your business communication

Dual-Band Wi-Fi – Supports 2.4 GHz & 5 GHz Wi-Fi.
2 SIP Lines – Supports 2 SIP accounts.
38.5° Demountable Bracket – Flexible mounting design.
Unified Communication – Comprehensive business calling features.
5 Programmable Keys – 2 Line, Up/Down & Redial keys.
Multi-Language – Supports English, French, Russian, Italian & more.
2 × 10/100M Ethernet – Optional PoE support.
Auto-Provisioning – Supports HTTP/HTTPS/TFTP/FTP.

The XN101W WiFi IP Phone by Aegis XNTEL is a professional VoIP desk phone designed for modern business communication. It supports dual-band Wi-Fi connectivity at 2.4 GHz and 5 GHz, offering flexible wireless deployment in compatible office environments.Featuring 2 SIP accounts, 5 programmable keys, HD voice, and a 2.8-inch backlit display, the XN101W WiFi IP Phone delivers essential features for everyday business calling.With PoE support, auto-provisioning, multilingual functionality, and a web-based user interface, this dual-band WiFi IP phone is suitable for offices, SMEs, and IP-PBX environments. Its ergonomic design and flexible connectivity support efficient deployment and reliable VoIP communication..

REQUEST A QUOTE

XN101W WiFi IP Phonee User Interface - Hardware Specification

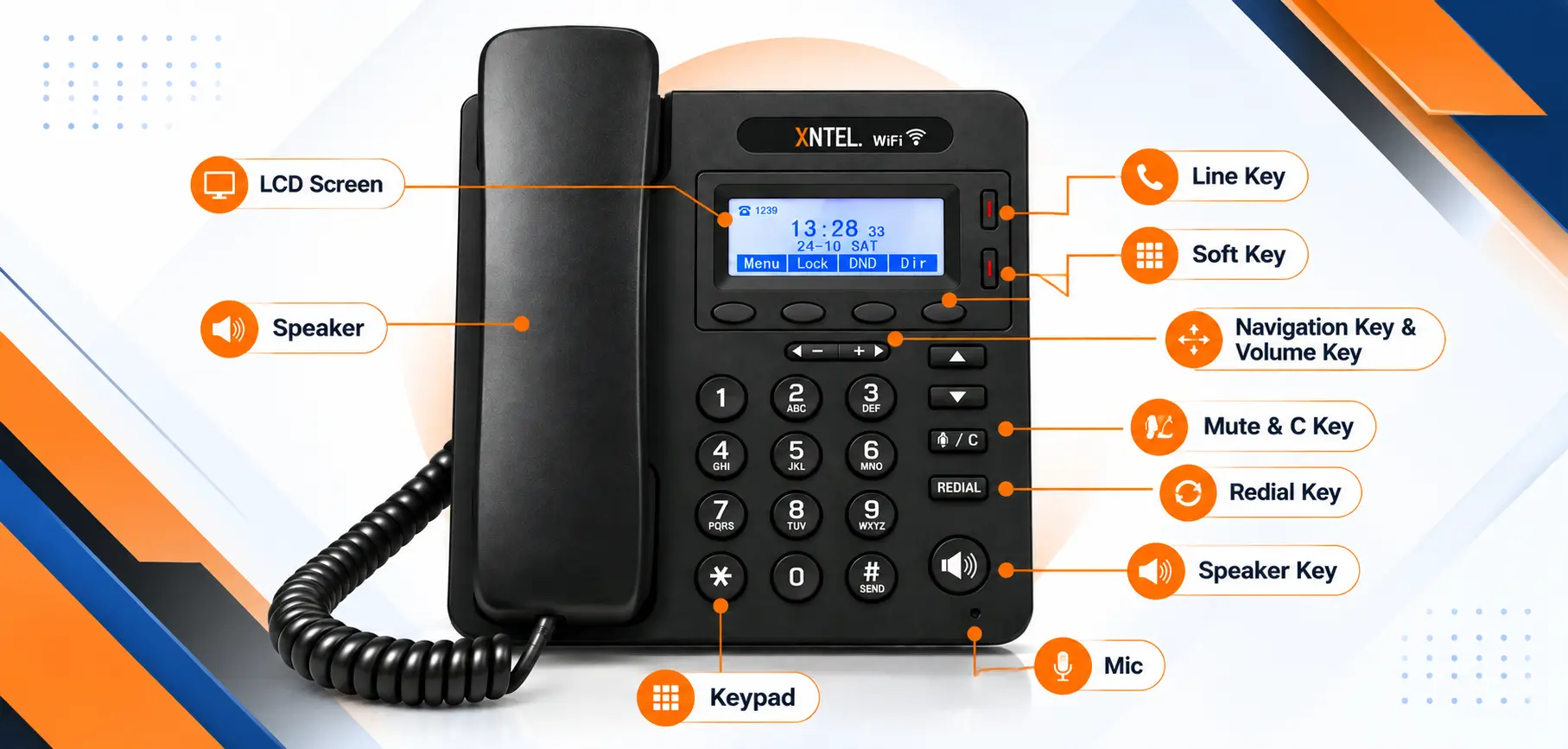

XN101W WiFi IP Phone User Interface

The main hardware components of the XN101W IP Phone are the LCD screen and the keypad

XNTEL XN101W is a Hardware component instructions :

S.No.	Item	Description
1.	LCD Screen.	Displayed information about calls, messages, soft keys, time, date and other relevant data: Call information — caller ID, call duration Icons (e.g. ) Missed calls or second incoming caller's information Time and date
2.	Line Key	Red, flashing: Incoming call Red, steady: Pick up but not on communication Green, steady: On communication Green, flashing: On hold Light off: Idle NOTE: Light yellow steady: Under the idle status, the light will on when: Missed Call, Transfer, DND, Message, Mute, SIP-Unregistered.
3.	Soft Key	Labels automatically to identify their context-sensitive features
4.	Navigation Key & Volume Key	In the idle status, press UP or DOWN key can check the call log: UP: Open the "All CONTACT LOG", DOWN: Open the "MISSED CALL", RIGHT and LEFT can check other list, like "RECEIVED CALL\DAIL CALL". In the idle or talking status, press RIGHT or LEFT key can adjust the volume.
5.	Mute & C Key	Cancels actions or rejects an incoming call, and the other feature: In the idle: Open the "Phone Status". Diagnosis: Press and hold 3 second to open "Hardware Diagnosis". MUTE: "MUTE" feature is enabled if you press it while the conversation making on the phone.
6.	Redial Key	Dial the latest number.
7.	Programmable Key	In the idle status, press and hold 3s will enter programmable function, the default password is empty: Line 1 & 2: press and hold can quickly enter account setting, If you want set it to another function, you need to login into website to change it. Navigation key UP & DOWN, Redial key press and hold can quickly enter programmable key setting function, they can change to `Redial\DND\Personal Phonebook\Enterprise Phonebook\LDAP\Directory\Speed Dial\Call History\Received Calls\Dialed Calls\Main Menu\New Message\Forwarded Calls\View Status\Enable/Disable SIP Account\Default`. NOTE: MUTE&C key isn't support programmable function.
8.	Speaker Key	Toggles the hands-free speaker phone mode. Press and hold can change to headset mode
9.	MIC	High sensitive pickup Mic.
10.	Keypad.	Provides the digits, letters and special characters in context-sensitive applications.
11.	Speaker	HD Speaker

XNTEL XN101W is a Technical Specification

Comprehensive technical details, network parameters, and physical features

Phone Features	2 SIP accounts, MWI(Line1) Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask) Caller ID display, Redial, Mute, DND Auto-answer, 3-way conferencing Speed dial, SMS, Voicemail, Tone scheme, Volume control Direct IP call without SIP proxy Ring tone selection/import/delete Black list, Hand-free indicator. Call history: dialed/received/missed; Soft keys programmable, Supports PC control Multi-Language: Chinese, English, French, Russian, Italian, Polish, Portuguesa, Portuguesa-Brasil, Spanish, Turkish
Advanced Features	5 programmable keys XML Phone Book search and input & output Enterprise phone book(800 entries) Personal Phonebook(300 entries) LDAP phone book
IP PBX System Integration	Busy lamp field (BLF), BLF list Bridged line appearance (BLA) DND & Forward synchronization Intercom, Paging, Music on hold Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection Network conference, Distinctive ring tone
Codes and Voice Features	Wideband Codec: G.722 Narrowband codec: G.711μ/A, G.726, G.729AB, iLBC VAD, CNG, AEC, AGC, Full-duplex
Security	VLAN QoS (802.1pq), SRTP Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess Secure configuration file via AES encryption Encryption for configuration file Phone lock for personal privacy protection Admin/User 2-level configuration mode, LLDP, CDP L2TP VPN tunneling protocol - added
Network Features	SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; SRTP voice encryption(RFC3711) Redundant server support NAT Traversal: STUN mode DTMF: In-Band, RFC2833, SIP Info, Auto HTTP Web Management IP Assignment: Static/DHCP/PPPoE Bridge/Router mode for PC port TFTP/DHCP/PPPoE client Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
Management	Auto-provision via FTP/TFTP/HTTP/HTTPS Configuration: browser/phone/auto-provision Trace package and system log export
Optional Feature	TR069, IPv6, HTTPS web management, 802.1x, OPEN VPN
Physical Features	12864 graphic LCD with back light 25 keys, including 5 programmable keys, 2 LEDs: 2 account lights, including MWI(L1) 1* RJ9 handset port 1* RJ9 headset port 2xRJ45 10/100M Ethernet ports Power adapter: AC 100~240V input and DC 5V/1A output POE, IEEE 802.3af, class 0 (Option) Power consumption: 1.5W Net weight: 0.62kg Dimension: 180x157x33mm Operating humidity: 10~95% Storage temperature: up to 60°C
Package Features	Qty/CTN: 20 PCS
Compatible with the platform	Avaya, ZTE, Asterisk, Cisco, metaswitch, Huawei, NEC
