XNP11W Wi-Fi Business – IP Phone

Flexible Wireless Communication for Modern Businesses

The Aegis XNTEL XNP11W is a business-grade Wi-Fi IP Phone designed for modern offices that require reliable voice communication with flexible network connectivity. With built-in 2.4GHz Wi-Fi, 2 SIP accounts, PoE support and dual 10/100 Mbps Ethernet ports, the XNP11W provides a practical communication solution for both wired and wireless business environments.

Featuring a 384 × 106-pixel backlit LCD, HD handset and speaker audio, and support for 6-way conference calling, the phone enables clear and efficient day-to-day business communication. It also includes essential calling functions such as call hold, mute, DND, call forwarding, call waiting, call transfer, redial, auto answer and voicemail.

The XNP11W further enhances workplace flexibility with USB 2.0 connectivity, USB call recording support and RJ9 headset connectivity. Its adjustable stand and wall-mountable design allow convenient installation according to different workspace requirements.

For simplified deployment and management, the phone supports web-based configuration, auto-provisioning and cloud device management, along with enterprise network features such as IPv4/IPv6, VLAN, QoS, OpenVPN, SSL and SSH.

2.4GHz Wi-Fi | 2 SIP Accounts | PoE | HD Voice | 6-Way Conference | USB 2.0 | Dual Ethernet | RJ9 Headset Support

2.4GHz
Wi-Fi

2 SIP
Accounts

6-Way
Conference

HD
Voice

Wi-Fi IP Phone XNP11W – Transform Your Business Communication

Support 2 SIP accounts
Built-in 2.4GHz Wi-Fi connectivity
Support 6-way conference calling
384 × 106-pixel backlit graphical LCD
Dual 10/100M Ethernet ports with PoE support
USB 2.0 support for call recording and wireless headset
HD handset & speaker with multiple audio codec support
Support RJ9 wired headset and wall mounting
Web configuration & auto-provisioning via FTP/TFTP/HTTP/HTTPS
Adjustable stand with 2 viewing angles

The Aegis XNTEL XNP11W is a professional 2.4GHz Wi-Fi IP Phone designed for modern business communication. It combines 2 SIP accounts, HD voice, 6-way conference calling, USB 2.0 connectivity, PoE support and dual 10/100 Mbps Ethernet ports for flexible and reliable connectivity.With a 384 × 106-pixel backlit LCD, essential call-management features, RJ9 headset support, adjustable stand and wall-mounting capability, the XNP11W is well suited for modern office environments. Its web-based configuration and auto-provisioning support simplify deployment and device management, making it a practical solution for businesses seeking efficient IP communication with both wired and wireless network flexibility.

REQUEST A QUOTE

Phone User Interface

The XNP11W features an intuitive user interface with a backlit LCD screen, navigation keys, soft keys and a full-function keypad for convenient call management and everyday operation.

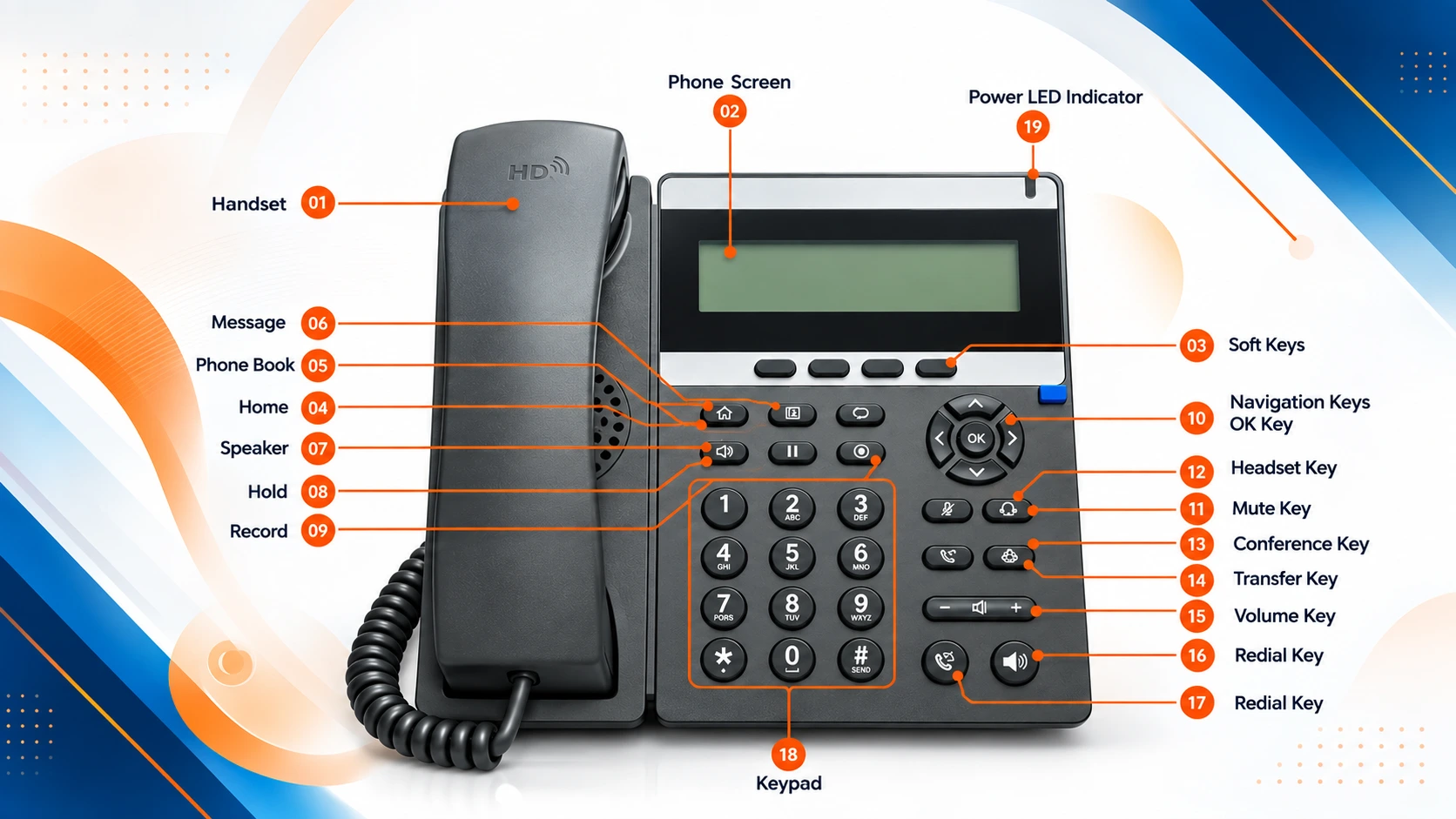

Hardware component instructions :

S.No.	Item	Description
1.	LCD Screen.	Displayed information about calls, messages, soft keys, time, date and other relevant data: 1. Call information — caller ID, call duration 2. Icons (e.g. DND) 3. Missed calls or second incoming caller's information 4. Time and date
2.	Light Status	Red-Flashing: There is an incoming call or be Hold. Red-Steady: Hook-off. or be in an usual conversation
3.	Line Key	Green-Steady: There is a conversation making on the line Red-Flashing: There is call coming in Green-Flashing: The line is on hold Dark: Accounts are idle
4.	Soft Key	Labels automatically to identify their context-sensitive features
5.	Navigation Key	Scroll through the displayed information, and in the idle feature: UP: Open the "All CONTACT LOG" DOWN: Open the "MISSED CALL" RIGHT: Open the "RECEIVED CALL" LEFT: Open the "DAIL CALL"
6.	OK Key	Confirm the action
7.	C Key	Cancels actions or rejects an incoming call, and the other feature: In the idle: Open the "Phone Status". Diagnosis: Press and hold 3 second to open "Hardware Diagnosis". MUTE: "MUTE" feature is enabled if you press it while the conversation making on the phone.
8.	Functions Key	`Conference\Redial\Transfer\Hold`
9.	Speaker Key	Toggles the hands-free speaker phone mode.
10.	Mc	Voice input
11.	Volume Key	Adjusts the volume of the handset, headset, speaker and ringer
12.	Keypad	Provides the digits, letters and special characters in context-sensitive applications.
13.	Handset	Voice input and output
14.	Speaker	Voice output
15.	Headset Key	Toggles and indicates the headset mode.
16.	Message Key	Indicates and accesses voice messages.

Technical Specifications - 50/50 Dual Column

Technical Specifications

Comprehensive hardware parameters, software integrations, and physical features

LCD Screen	> 384×106px backlit B/W LCD screen > 16-bit depth color
Function Keys	> 12 Function Keys: M1, M2, M3, M4, M5, M6, mute, headset, transfer, redial, speakerphone > 4 Soft Keys, 5 Navigate Keys, Volume+/-
SIP Accounts	> 2 SIP accounts
Wi-Fi	> 2.4GHz (support 5G Wi-Fi dongle)
USB Port	> USB call recording through USB flash drive > Wireless Headset Adapter EHS10 > Bluetooth earphone through BT50
Ethernet Port	> 2*10/100 > Support PoE
Other Ports	> 1 x Handset port > 1 x RJ9 Headset port - Wire-controlled RJ9 headset through HP200

Basic function	> Call hold, Mute, DND, Redial, Auto answer, One-touch speed dial, Hotline, Call forward, Call waiting, Call transfer (attended/blind), Paging, Voice mail, Anonymous call, Anonymous call rejection, Message waiting indicator (MWI)
Direct IP Call	> Supported
Phone book	> 2000 records; Phonebook search/import/export; XML/LDAP remote phonebook; Black list
Call History	> 60 records; Call history: all/missed/dialed/received
Conference Call	> 6-way conference, Network conference

HD Voice	> HD handset, HD speaker
Audio Codec	> G.722, Opus, AMR-WB(Optional), G.711WB(Optional), G.711(A/u), iLBC, G.729A/B, G.723, G.723.1, G.726, AMR-NB(Optional)
DTMF	> In-band, RFC 2833, SIP info
Other Features	> AEC, VAD, CNG, PLC, AGC, AJB

Network Safety

> SIP Related Features:
- SIP v1 (RFC2543), v2 (RFC3261), NAT Traversal by STUN
- SIP link mode: Proxy mode and peer-to-peer SIP link mode
- Call server redundancy supported
> Network Features:
- Static IP and DHCP, IPv4 /IPv6, Dual stack IPv4/IPv6, PPPoE, ARP/RARP, DNS A/DNS SRV/DNS NAPTR
- LLDP/CDP/DHCP VLAN; IEEE802.1X; OpenVPN; DSCP, 802.1p QoS, SSL, SSH
> Time and Date synchronization: SNTP, DHCP
> Transport Feature: UDP/TCP/TLS; RTP/RTCP/SRTP

Auto-Provision	> TR069 (TR104/TR106) > FTP/TFTP/HTTP/HTTPS for Auto Provisioning > Cloud device management: FACS > Cloud device management: FRPS > DHCP Option66
Configuration	> Supports web configuration > Factory reset, reboot > Packet capture, system log

Physical Features

> New Stand, Wall mountable
> AC/DC Adapter, AC Input: 100~240V, 50~60Hz
> DC Output: 5V, 1A
> Power consumption (PSU): 1.6~3.0W
> Power consumption (PoE): 1.7~3.3W
> Relative humidity: 10%~90% (No Condensing)
- Storage temperature: -20~ 65°C
- Operation temperature: 0~45°C
> Dimension (W x D x H): 190mm × 188.5mm × 41mm
