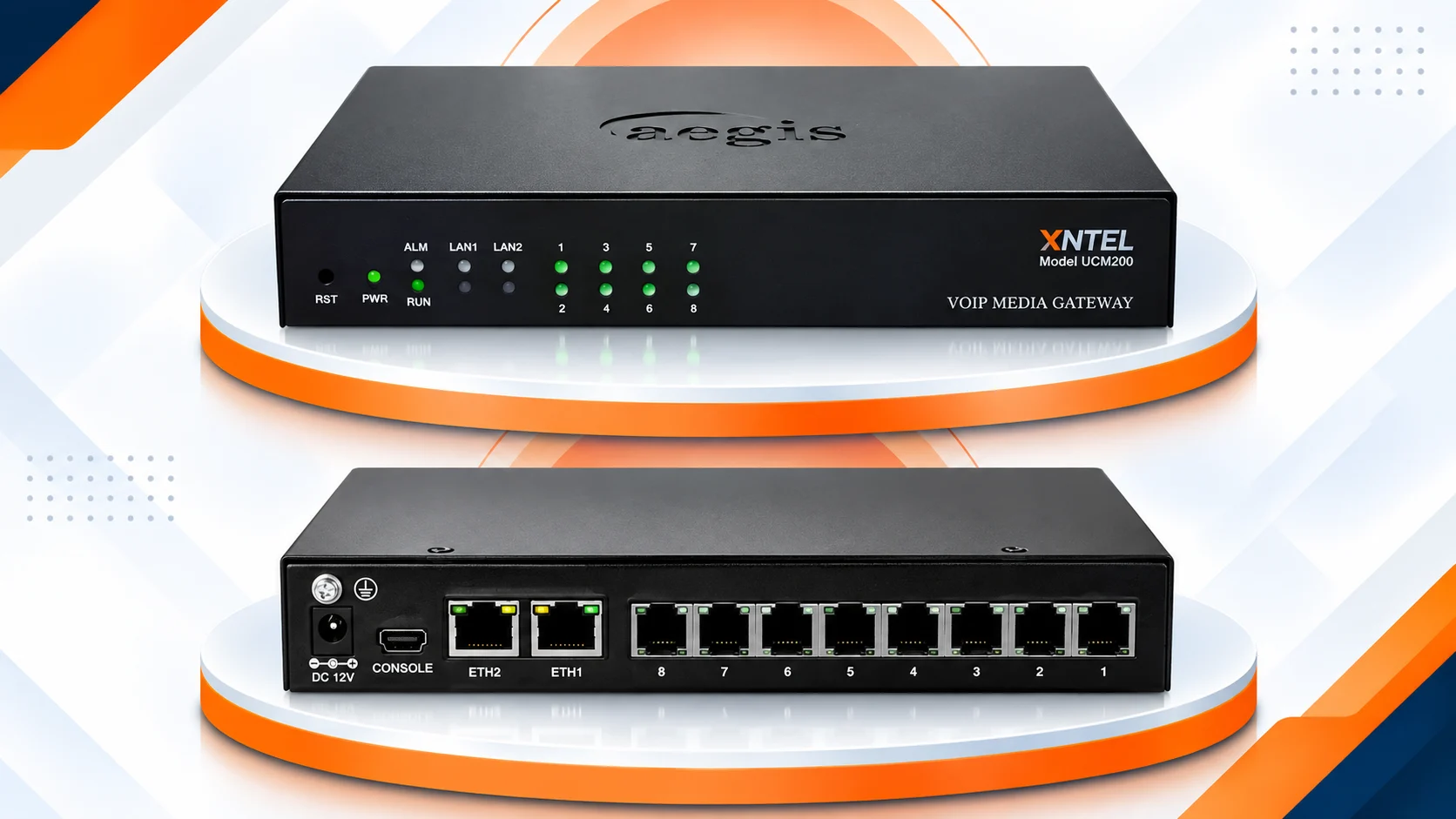

VoIP FXO Analog Gateway - XNTEL UCM200-D8O Series
Efficient and Robust Voice Connectivity Between PSTN and IP Networks
The XNTEL UCM200-D8O is an 8-port FXO VoIP Analog Gateway designed to connect traditional analog/PSTN telephone lines and legacy PBX systems with modern IP networks and VoIP platforms. It provides a practical bridge between TDM-based telephone infrastructure and SIP-based communication systems, helping businesses extend their existing telephony investment into IP-based environments.
With 8 telephony ports, SIP/TDM signaling, IP-to-PSTN and PSTN-to-IP call routing, and support for multiple voice codecs, the UCM200-D8O is suitable for SMBs, call centers, branch offices, and multi-location businesses requiring reliable analog-to-VoIP connectivity.
Advanced Search
Easy to Install
Clear
Recording
Online
Monitoring
Feature Packed
A complete features set that meets all of your requirements and lowers communication costs.
User-friendly
Easy to use Web GUI and intuitive control. Effortless intallations, configure, debug and maintain.
Elevated Efficiency
Excellent voice compression using established codecs for the industry. Compatible with various IP systems
Adaptive Setting
Aegis XNTEL PBX supports standard open protocol TR-069 and PPPoE or DHCP provisioning.
- Link VoIP networks to analog phone lines or PABX extension interfaces.
- High-quality voice calls with exceptional dependability and performance.
- This creative approach is scalable to businesses of any size.
- Caller ID presentation and restriction
- Hotline extension setting
- Web-based remote administration
- Restrict unwanted calls with a list of prohibited numbers
- VoIP connectivity with high performance for SMBs
REQUEST A QUOTE
Salient Features
Fit to Diverse Applications

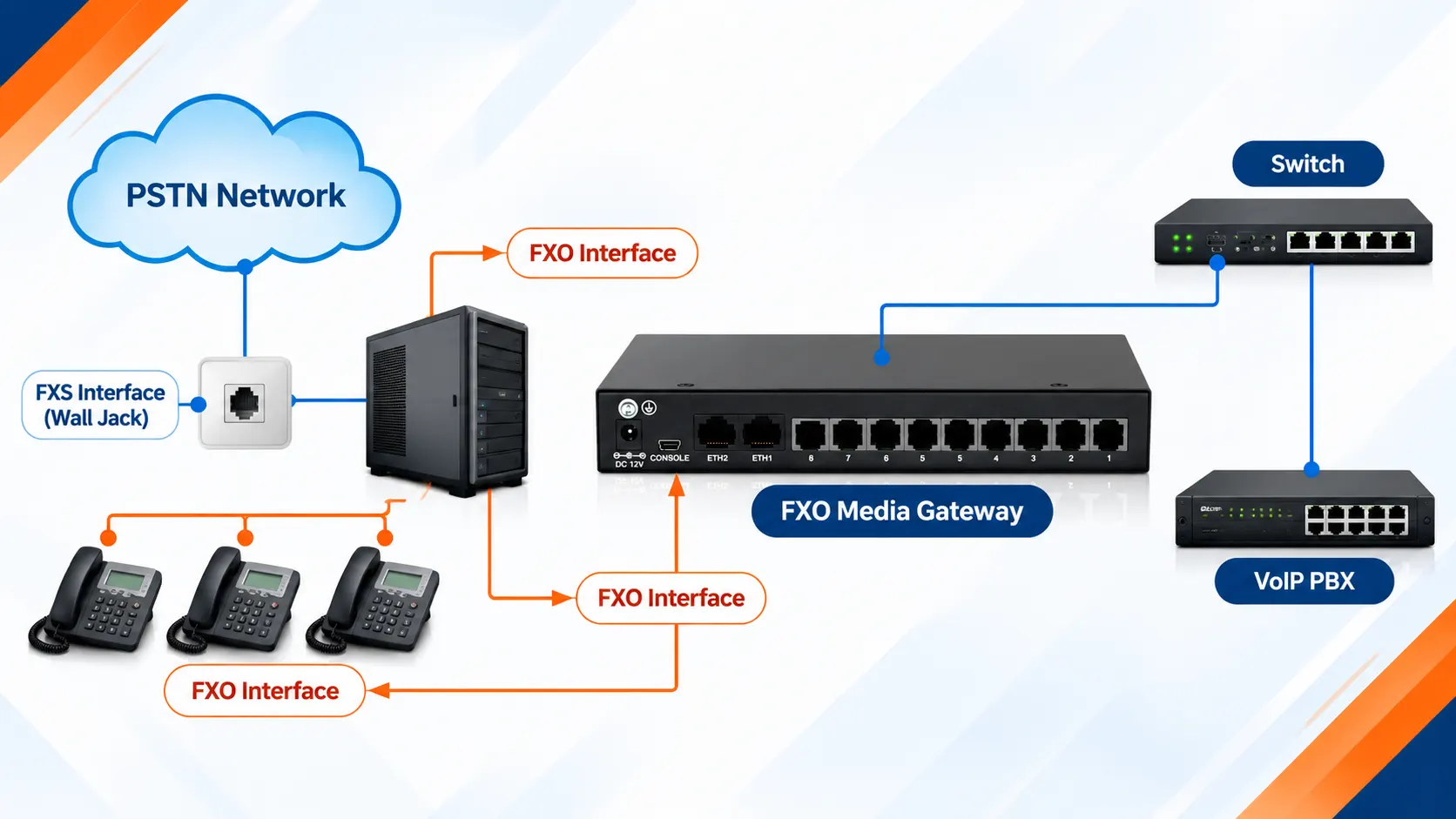

Used to connect IP telephones to a legacy PBX, integrate network-hosted applications with the PBX, extend the PBX to branch offices, and integrate various voice and call processing capabilities in an enterprise LAN or WAN environment.
Flexible Call Routing
Route calls from the switched network to a VoIP destination on the IP network or conversely, and support the following call routing options: TDM to IP or IP to TDM, with IP load balancing, IP fault tolerance.
Controlled Migration to IP
Compatible with general FXO/FXS lines, and a variety of popular PBX manufacturers (Digital PSTN lines compliance would be available), and protects investment in legacy telecommunications equipment.
User-Friendly Management
Supports configuration via serial, Telnet, and a web browser including context-sensitive help Easy to install, configure, debug, and maintain.
Enhanced Voice/Fax Processing
Supports a variety of compression algorithms, including G.711 A-law and μ-law, G.729A/B; Transcode fax from T.30 fax protocol (supporting V.17) to T.38 for transmission over a packet network.
Web Server Interface & Hot Swap
Each gateway unit is delivered with a web server interface, allowing configuration and software upgrades via a web browser; Allows gateway units to be added or removed without affecting other gateway.
FXO VoIP Gateway Features
| Answer Detection | Attack Alert |
| Auto Provisioning with XNTEL IP-PBX | Backup and Restore |
| Call Back | Call Detail Records |
| Caller ID Display | Firewall |
| Firmware Upgrade by HTTP/TFTP | Hangup Detection |
| IP Blocklist | Nat Traversal |
| Packet Capture Tool | Programmable AC Impedance |
| System Logs | Web-based Management |
| Technical Specification : | |
|---|---|
| Main Model No. | UCM200 O Series |
| UCM200-D4O | |
| Sessions | 8 |
| Telephony Ports | 8 |
| Interface | RJ11 |
| LAN | 1*10/100Mbps |
| Console Port | N/A |
| Signaling | SIP/TDM |
| Power Supply | Single |
| Power Requirements | 12V DC |
| Codecs | G.711/729/723/722/iLBC/AMR |
| DTMF Mode | RFC2833, SIP Info, In-band |
| Fax | T.38 and Pass-through |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging |
| Network | DHCP, PPPoE, Static Route, VLAN |
| Network Protocol | TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN |
| Management Protocol | TR-069* |
| Signaling | FXS Loop Start, FXS Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection |
| Dimensions H*W*D(mm) | 220*148*40 |
| Routing | Call routing(IP ↔ PSTN) |
| Mounting | Desktop |
| Compatibility | Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide |
| Environment | Operating temperature range : 0 to +55 °C, 8-90% relative humidity non-condensing Storage temperature range : 20 to +85 °C, 8-90% relative humidity non-condensing |
| Safety | Compliant with most international standards, please ask sales representatives worldwide. We would comply all new safety standard to for different regions around the world while needed. |
| EMC/EMI | Compliant with most international standards. For compliance documents, please contact sales representatives. |
| OAM&P | Network Time Protocol(NTP) Web User interface (WebUI) supports configuration via browser SNMP MIBs |
ONE SOLUTION FOR EVERY INDUSTRY.
AREA OF USES
