UCM 200 DS – 32 Ports

FXS VOIP GATEWAY – XNTEL UCM200-D32S

High-Density Analog-to-IP Connectivity for Modern Business Communication

The XNTEL UCM200-D32S is a 32-port FXS VoIP Gateway designed to connect traditional analog phones, fax machines, and other legacy telephony devices with modern VoIP, SIP, and IP-PBX systems. It provides a scalable and reliable solution for organizations looking to integrate existing analog infrastructure into an IP-based communication environment.

With 32 sessions and 32 telephony ports, the UCM200-D32S supports SIP/TDM signaling, flexible IP-to-PSTN routing, T.38 and pass-through fax, Caller ID, call waiting, call forwarding, conference calling, hunting groups, firewall, backup and restore, and web-based management.

The gateway features RJ11, RJ21 and RJ45 interfaces, dual 10/100 Mbps LAN ports, a console port, TR-069 management, and VLAN/QoS support, making it suitable for high-density deployments across SMBs, contact centers, enterprises, and multi-branch organizations.

Advanced Search

Easy to Install

Clear
Recording

Online
Monitoring

FXS VOIP GATEWAY-UCM200-DS 32 PORT - AEGIS XNTEL

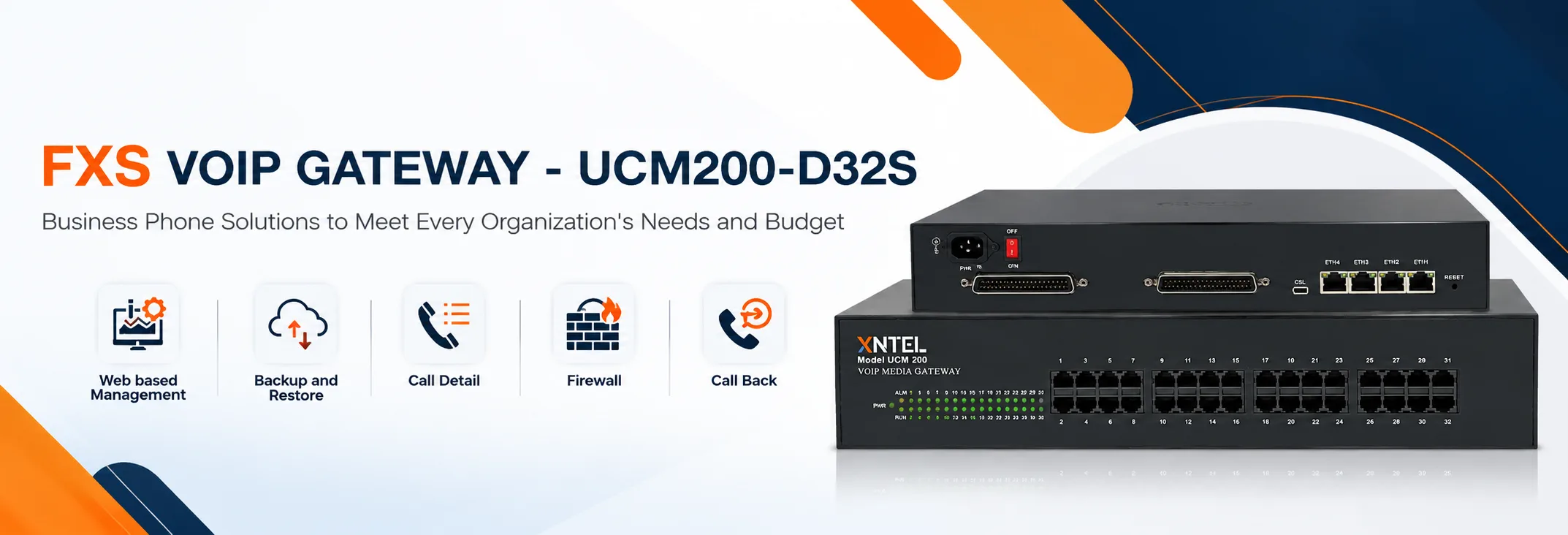

FXS VoIP Gateway - UCM200-D32S Front and Back View

FXS VoIP Gateway-UCM200-DS-32

FXS gateway is used to connect your traditional telephones and fax machines to a VOIP Phone system, an FXO gateway is used to connect your VoIP phone system to your PSTN lines. POTS devices, including analog phones, fax machines, and legacy voicemail systems, are connected to a VoIP gateway via FXS analog trunks. FXS The port that genuinely provides the analog line to the subscriber is known as the subscriber interface. In other words, the dial tone, battery current, and ring voltage are all provided by the "plug on the wall."

Easy integration with existing telephony interfaces
VoIP connectivity with high performance for SMBs and enterprise networks
Flexible Call Routing and Number Manipulation
Place and receive IP calls seamlessly from high-density analog extensions
Fully compliant with standard SIP protocols, also features flexible calling rules
Stand-alone FXS VoIP gateway with carrier-grade features and reliability
Easy to install, configure and maintain via centralized web GUI

REQUEST A QUOTE

FXS VoIP Gateway Benefits :

Feature Packed

A complete features set that meets all of your requirements and lowers communication costs.

easy-peasy

You can save a ton of time with Web-based configuration that is easy to use and intuitive.

Authentic

Steady with cutting-edge software and hardware architecture

Interoperability

Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide.

PSTN Network FXS/FXO Interface Architecture Diagram

FXO VoIP Gateway Features

FXS VoIP Gateway Features

Key Features :
Attack Alert	Nat Traversal	Call Forward (Always Busy, No Answer)
3-way Conference	Do Not Disturb	Radius Accounting & Login
Blind Transfer	TR-069	Hunting Groups
Caller ID Display	Web-based Management	Call Waiting
API	Packet Capture Tool	Firewall
Attended Transfer	SNMP	Voice Menu for Basic Configuration
Backup and Restore	System Logs	IP Blocklist
Call Detail Records	Hotline	Remote Management

```[cite: 17]

Technical Specifications

Technical Specification :
Main Model No.	UCM200S
Main Model No.	UCM200-D32S
Sessions	32
Telephony Ports	32
Interface	RJ11, RJ21, RJ45
LAN	2*10/100Mbps
Console Port	1
Signaling	SIP/TDM
Power Supply	Single
Power Requirements	AC Frequency 47 Hz to 63 Hz
Codecs	G.711/729/723/722/iLBC/AMR
DTMF Mode	RFC2833, SIP Info, In-band
Fax	T.38 and Pass-through
QoS	DiffServ, ToS, 802.1 P/Q VLAN tagging
Network	DHCP, PPPoE, Static Route, VLAN
Network Protocol	TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN
Management Protocol	TR-069*
Signaling	FXS Loop Start, FXS Kewl Start
Caller ID	BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
FXO Connectivity	Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Dimensions HWD(mm)	44026744
Routing	Call routing(IP ↔PSTN)
Mounting	Wall-mount
Compatibility	Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide
Environment	Operating temperature range : 0 to +55 °C, 8-90% relative humidity non-condensing Storage temperature range : 20 to +85 °C, 8-90% relative humidity non-condensing
Safety	Compliant with most international standards, please ask sales representatives worldwide. We would comply all new safety standard to for different regions around the world while needed.
EMC/EMI	Compliant with most international standards. For compliance documents, please contact sales representatives.
OAM&P	Network Time Protocol(NTP) Web User interface (WebUI) supports configuration via browser SNMP MIBs

Utilization Context

1. Analog Extensions for IP-PBX

Analog phone and fax machines can be connect directly to the FXS ports of aegis XNTEL gateway, analog telephones are enalbled to work as extensions of the IP-PBX. Businesses may use the inexpensive analog phones to connect to VoIP networks without having to spend extra money on pricey IP phones.
