UCM 200 DS – 96 Ports

FXS VOIP GATEWAY – XNTEL UCM200-D96S

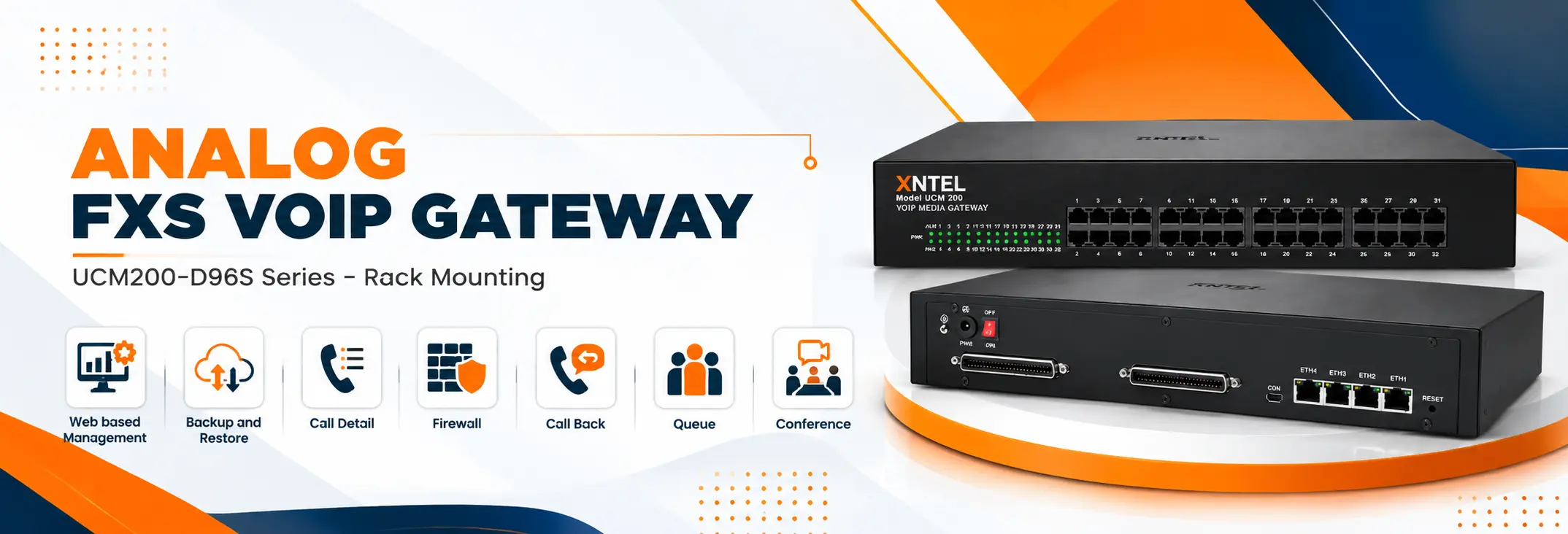

Analog FXS VoIP Gateway for High-Density Voice Connectivity

The XNTEL UCM200-D96S is a high-density FXS VoIP Gateway designed to bridge traditional analog telephony equipment with modern IP-based communication networks. With support for 96 FXS ports through RJ21, the gateway enables organizations to connect a large number of analog telephones and fax machines to an IP-PBX or SIP-based telephony infrastructure.

Built for enterprise-scale deployments, the UCM200-D96S combines Gigabit Ethernet connectivity, SIP support, flexible call routing, advanced voice processing, and Fax over IP capabilities in a rack-mountable platform. This makes it suitable for organizations looking to extend or migrate their existing analog telephone infrastructure to VoIP while continuing to use their existing analog endpoints.

The gateway supports SIP-based IP telephony, IPv4/IPv6 networking, T.38 and fax pass-through, multiple voice codecs, QoS, VLANs, and advanced call-handling features. It can also be managed through web-based interfaces, Telnet and serial console, with additional capabilities such as SNMP, TR-069, auto provisioning, configuration backup and restore, CDR, system logging, and cloud-based management.

Advanced Search

Easy to Install

Clear
Recording

Online
Monitoring

FXS VOIP GATEWAY - XNTEL UCM200-DS-96 SERIES

UCM200-DS-96-PORT - VoIP FXS Analog Gateway

UCM200-D96S Series - VoIP FXS Analog Gateway

Cost effective gateway with 96/120/144 FXS ports
Easy integration with existing telephony interfaces
VoIP connectivity with high performance for SMBs
Flexible Call Routing
Fax over IP (T.38 and Pass-Through)
Support IPv4 and IPv6
Place and receive IP calls from analog extensions
Fully compliant with SIP, also features flexible calling rules.
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Easy to install, configure and maintain
Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR, etc.

REQUEST A QUOTE

FXS VOIP GATEWAY - XNTEL UCM200-DS-96-PORTS

The Analog Gateway UCM200-D96S transforms analog PSTN messages into a format that can be sent over conventional IP networks. Fax over IP, 96/120/144 FXS ports, and adjustable dial plans are all features of the device. It is perfect for call centers, multi-location settings, and medium-sized and big organizations that require VoIP services. Along with being interoperable with top IMS/NGN platforms and SIP-based IP telephony systems, the UCM200-D96S supports the industry-standard SIP protocol.

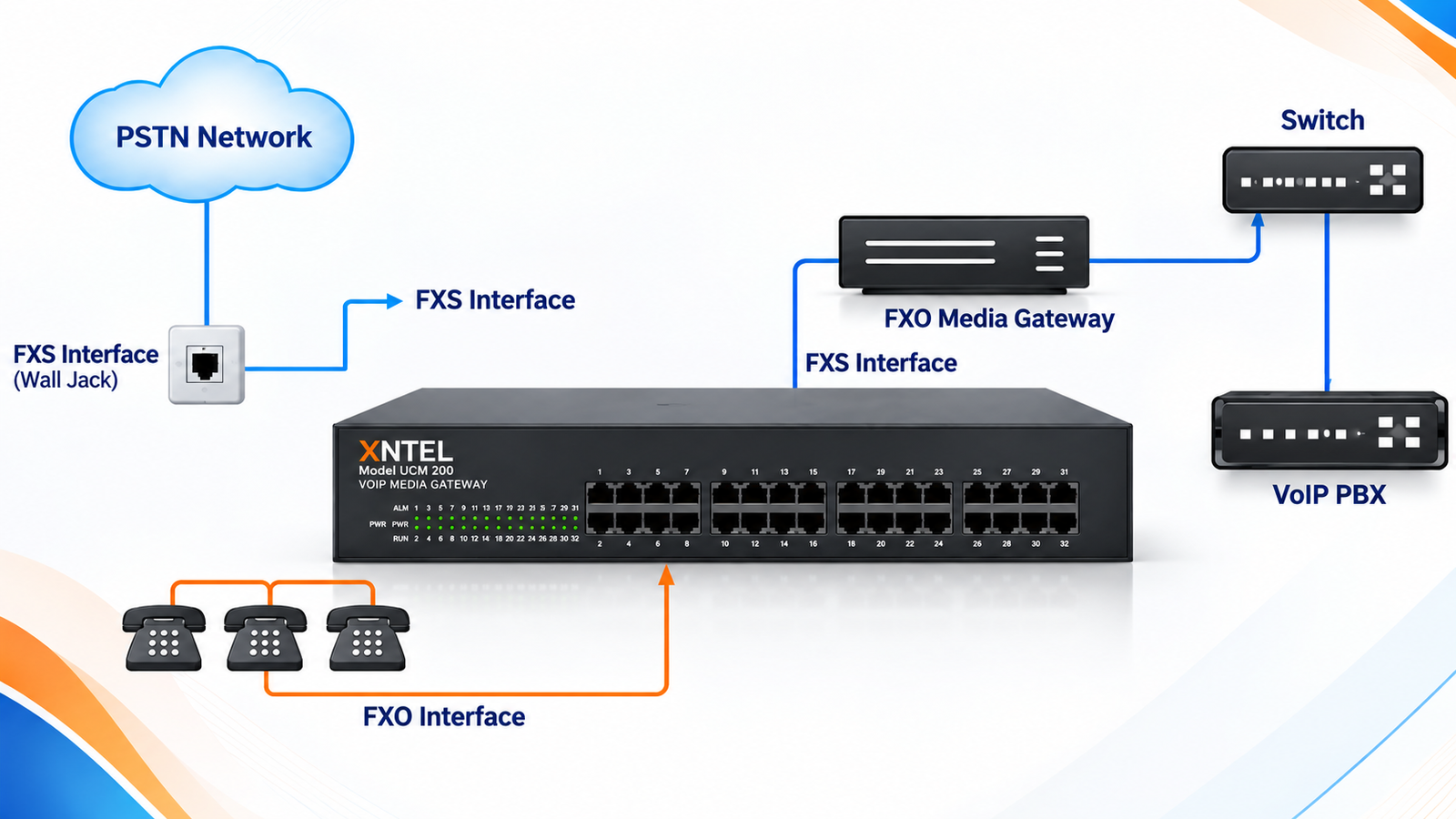

Aegis XNTEL UCM200-D96S Network Topology Architecture

Salient Features

Diverse Applications

Easily connects hosted applications, remote branches, and IP phones to existing legacy PBX networks.

Flexible Routing

Bi-directional call routing between PSTN and IP with integrated load balancing and fault tolerance.

Controlled Migration

Compatible with major PBX brands and legacy lines to preserve existing infrastructure investment.

Easy Management

Simple setup and maintenance via intuitive web interface, serial console, and Telnet support.

Voice & Fax Processing

Supports G.711/G.729 codecs alongside seamless T.30 to T.38 real-time fax transcoding.

Web Server & Hot Swap

Browser-based upgrades and modular hot-swap design enable changes without network downtime.

FXO VoIP Gateway Features

Key Features :
Attack Alert	Nat Traversal	Call Forward (Always Busy, No Answer)
3-way Conference	Do Not Disturb	Radius Accounting & Login
Blind Transfer	TR-069	Hunting Groups
Caller ID Display	Web-based Management	Call Waiting
API	Packet Capture Tool	Firewall
Attended Transfer	SNMP	Voice Menu for Basic Configuration
Backup and Restore	System Logs	IP Blocklist
Call Detail Records	Hotline	Remote Management

UCM200-D96S Gateway Front Panel Hardware

Technical Specifications

Physical Interfaces :
Main Model No.	UCM200S
Main Model No.	UCM200-D96S
Capacity	96/120/144 FXS with RJ21
Ethernet Interfaces	2* LAN, Gigabit, RJ-45
Gigabit optical port	1*SFP, 1Gigabit
Console	1*RS232, 115200bps
Dimensions(W/D/H)	44041066mm
Unit Weight	about 9kg
Voice & FAX	G.711A/U law, G.723.1, G.729 A/B, AMR, iLBC Silence Suppression
	Comfort Noise Generation(CNG) Voice Activity Detection(VAD)
	Echo Cancellation(G.168), with up to 128ms Adaptive (Dynamic) Jitter Buffer Hook Flash Programmable Gain Control T.38/Pass-through
	High speed fax up to 14.4kbps Modem/POS
	DTMF mode: Signal/RFC2833/INBAND VLAN 802.1P/802.1Q
	(data/voice/management VLANs) Layer3 QoS and DiffServ
Supplement Service	Call Waiting Blind Transfer Attend Transfer
	Call Forward on Busy
	Call Forward on No Reply Unconditional Call Forward
	Warm/Immediately Hotline
	Call Hold
	Do-not-disturb
	3-Way Conference Message Waiting Indicator
FXS	Connector: RJ21
	Dial Mode: DTMF and Pulse
	Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 5 km
	Reversed Polarity
	Programmable Call Progress Tone
Software Features	Digitmap
	Hunting Group Web ACL
	PPPoE/IPv4/IPv6
	Routing Rules based Prefixes Caller/Called Number
	Manipulation
Maintenance	SNMP v1/v2/v3
	TR069
	Auto Provisioning Web/Telnet
	Configuration Backup/Restore
	Firmware Upgrade via Web CDR
	Syslog(Emerg,alert, critical,error warning,notice,info, debug)
	Ping/Tracert Test Network Capture
	NTP/Daylight Saving Time
	Cloud-based Management
VoIP	Protocol : SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
	SIP TLS/SRTP
	RTP/RTCP, RFC2198, 1889
	RFC4028 Session Timer
	RFC3581 NAT,rport Primary/backup SIP server Outbound Proxy
	DNS SRV/ A Query
	SIP Trunk
	Early Media/Early Answer NAT:STUN, Static/Dynamic NAT
Environmental
Power Supply	100-240VAC, 50-60 Hz Power
Consumption	40W(Typical) Operating Temperature:0 °C ~ 45 °C
Storage Temperature	-20 °C ~85 °C
Humidity	10%-90% Non-Condensing

Utilization Context

1. Analog Extensions for IP-PBX

Analog phone and fax machines can be connect directly to the FXS ports of aegis XNTEL gateway, analog telephones are enalbled to work as extensions of the IP-PBX. Businesses may use the inexpensive analog phones to connect to VoIP networks without having to spend extra money on pricey IP phones.
