AEGIS XNTEL - 2G GSM Voice Terminal XN 520
Reliable GSM Connectivity for Voice Communication
The AEGIS XNTEL XN 520 2G GSM Voice Terminal is a compact, intelligent, and reliable Fixed Cellular Terminal designed to provide seamless voice communication over a GSM network. It offers a practical alternative to conventional telephone lines and is suitable for businesses, offices, security systems, emergency communication applications, and other voice-based communication requirements.
Designed for easy installation, reliable operation, and cost-effective communication, the XN 520 provides GSM connectivity through two parallel FXS ports, allowing users to connect standard telephone instruments, PBX systems, VoIP FXO gateways, and compatible communication equipment.
Advanced Search
Easy to Install
Clear
Recording
Online
Monitoring
Aegis GSM FCT basic GSM Voice Terminal/FCT/FWT connect your business with GSM world with its compact and intelligent XN-520FCT terminal which satisfies your cost cutting voice communication need and provide next generation features.
Aegis FCT Fixed Cellular Terminal has provision to connect GSM Sim with two parallel FXS Ports. FXS Ports can be interface with any make of PBX, VoIP FXO gateways, Telephone instrument, Dial pad for making and receiving calls via GSM network.

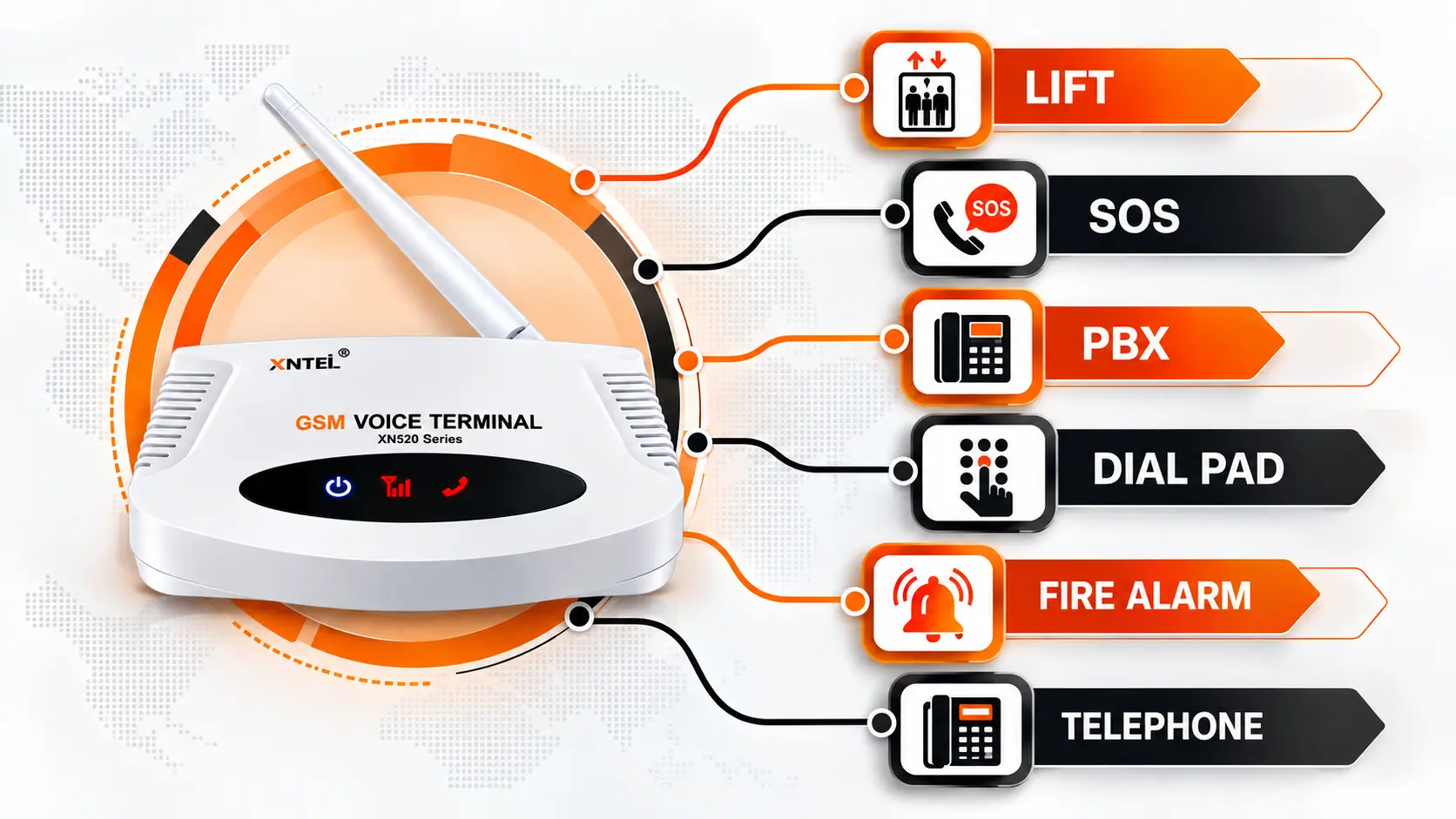

Beside this Aegis GSM FCT Basic (GSM Voice Terminal XN520 Series) can be used as:
Replacement of tradition telephone line with any make of fire alarm system to send emergency voice message
As a Lifts GSM Emergency calling System
As a Highway GSM SOS Calling device
REQUEST A QUOTE
Silent Features
Compatible with popular and major Telephone Instruments, PBX systems and VoIP FXO Gateways
Connect to any make of Alarm systems for temper-proof connectivity in place of traditional telephone line

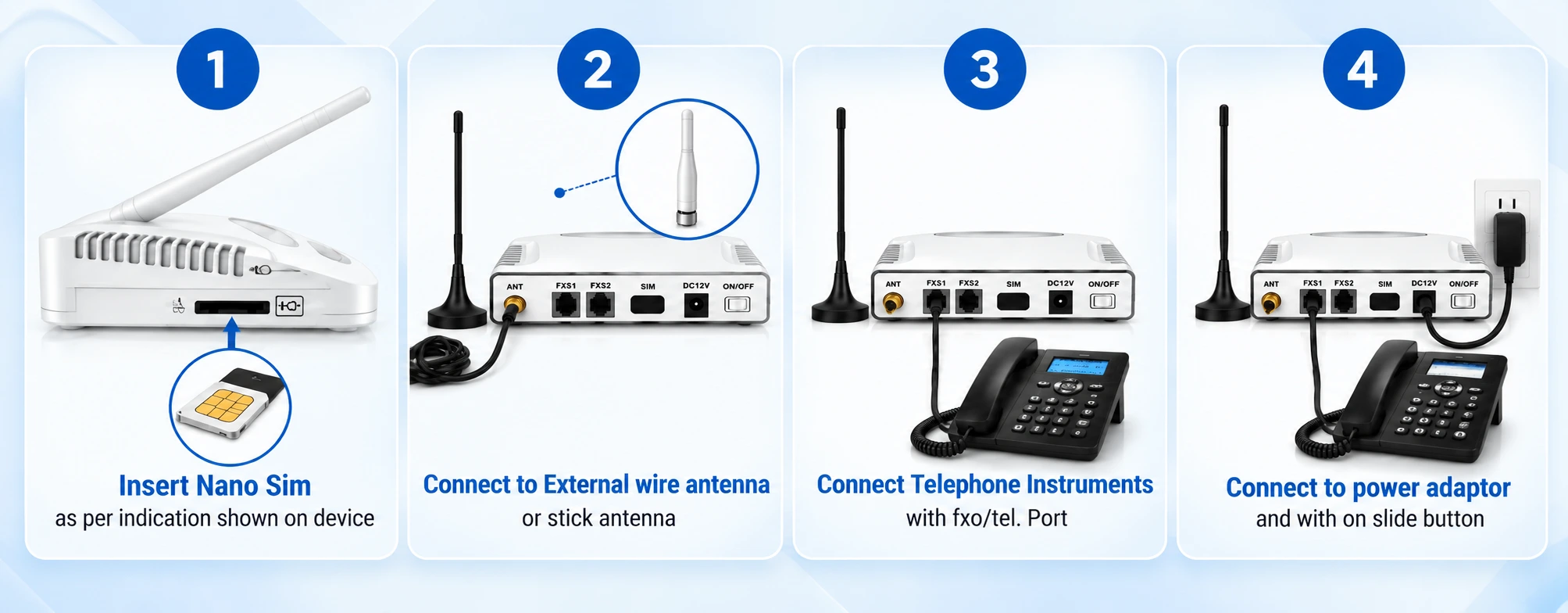

Quick and trouble free Installation
Using Best Quality active and passive components and adopt advance microcontroller technology to make it more rugged and robust in design
High gain antenna with 3 meters wire to make its signal more strong
Reversal Polarity for accurate metering
Best in quality Nano sim card slot
Available Aegis fixed cellular terminal with 2G, Network
Suitable for 24*7 scenario
Available with lithium-ion battery- Talk time 3.5 hrs. Standby 9 hours (Optional)
GSM FCT
XN520 GSM Voice Terminal has provision of In-built 320000 mins of call recording. It allows customer to record phone conversations into on-board SD card automatically. It also allow users to manage all stored recordings and information with its Advance User-Friendly window base management software. (Optional)
GSM based aegis XN520 voice terminal has provision of multi-party conference on GSM network without any drop in voice quality.
Product Connectivity & Overview
Parameters
| XN-520FCT | Basic GSM Device for Voice Application |
| Air Interface Standard | GSM850/900/1800/1900MHz phase 2+ full band |
| GSM 850 Range | Transmission: 869.2 ~ 893.8MHz | Reception: 824.2 ~ 848.2MHz |
| GSM 900 Range | Transmission: 890 ~ 915MHz | Reception: 935 ~ 960MHz |
| GSM 1800 Range | Transmission: 1,710 ~ 1,785MHz | Reception: 1,805 ~ 1,880MHz |
| GSM 1900 Range | Transmission: 1,930 ~ 1,990MHz | Reception: 1,850 ~ 1,910MHz |
| Transmitting Power | < 3W |
| Antenna Interface | Antenna amplifying > 2.5dBi (SMA Connector) |
| Operation Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Operation Humidity | 45% ~ 95% RH |
| Atmosphere Pressure | 86 ~ 106 Kpa |
| Environment Noise | < -104 dBm |
Telephony & Electrical Ratings :
| Parameter | Electrical Rating |
|---|---|
| Supply RJ-11 Phone Interface (Dual Parallel) | |
| 450 Hz | |
| 45V | |
| 30mA / 41mA | |
| Polarity Reversal for Call Connect / Disconnect |
| Specification | Hardware Standard |
|---|---|
| Input: AC 110~240VAC 50~60Hz | Output: 12DC 1A | |
| Wall Mount and Table Top Desktop Ready | |
| Push-Type Nano SIM Card Slot (1.8V / 3V Auto Detect) | |
| Universal Interface for PBX / VoIP FXO / Key Phone Systems |
ONE SOLUTION FOR EVERY INDUSTRY.
AREA OF USES
