UCM 200 DS – 48 Ports

FXS VOIP GATEWAY – XNTEL UCM200-D48S

High-Density Analog-to-IP Connectivity for Modern Business Communication

The XNTEL UCM200-D32S is a 48-port FXS VoIP Gateway designed to connect traditional analog phones, fax machines, and other legacy telephony devices with modern VoIP, SIP, and IP-PBX systems. It provides a scalable and reliable solution for organizations looking to integrate existing analog infrastructure into an IP-based communication environment.

With 48 sessions and 48telephony ports, the UCM200-D32S supports SIP/TDM signaling, flexible IP-to-PSTN routing, T.48 and pass-through fax, Caller ID, call waiting, call forwarding, conference calling, hunting groups, firewall, backup and restore, and web-based management.

The gateway features RJ11, RJ21 and RJ45 interfaces, dual 10/100 Mbps LAN ports, a console port, TR-069 management, and VLAN/QoS support, making it suitable for high-density deployments across SMBs, contact centers, enterprises, and multi-branch organizations.

Advanced Search

Easy to Install

Clear
Recording

Online
Monitoring

FXS VOIP GATEWAY - XNTEL UCM200-DS-48 PORT

UCM200-DS-48 PORT - VoIP FXS Analog Gateway

UCM200-D48S Series - VoIP FXS Analog Gateway

Easy integration with existing telephony interfaces
VoIP connectivity with high performance for SMBs
Flexible Call Routing
Fax over IP (T.38 and Pass-Through)
Support IPv4 and IPv6
Place and receive IP calls from analog extensions
Fully compliant with SIP, also features flexible calling rules.
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Cost effective gateway with 48/72 FXS ports
Easy to install, configure and maintain
Multiple codecs: G.711A/U, G.723.1, G.729A/B, AMR etc.

REQUEST A QUOTE

ANALOG FXS GATEWAY - XNTEL UCM200-DS-48 PORT

Aegis XNTEL is Asia's most experienced manufacturer of sip servers. For a wide range of situations, we can provide IP PBX phone solutions. FXS gateways are used to link VoIP phone systems to conventional analog phones and fax machines. FXO gateways expand the FXO ports of IP PBXs to connect additional PSTN lines and allow call making and receiving on PSTN channels throughout a power or internet connectivity outage.

Aegis XNTEL provides reliable and affordable analog FXO-FXS VoIP gateways that allow you to easily connect your analog phones, fax machines, and legacy PBX to IP networks and IP phone networks. In addition to maximizing VoIP conversion, this maximizes the return on your investment in your existing phone system. The XNTEL UCM200-DS-48 PORT model offers call centers and multi-branch organizations robust, flexible, and efficient VoIP solutions at a fraction of the price with up to 48 FXS ports, 48 SIP channels, and a wide range of robust gateways.

FXS VoIP Gateway Features
FXS VoIP Gateway Features
Key Features :
Attack Alert Nat Traversal Call Forward (Always Busy, No Answer)
3-way Conference Do Not Disturb Radius Accounting & Login
Blind Transfer TR-069 Hunting Groups
Caller ID Display Web-based Management Call Waiting
API Packet Capture Tool Firewall
Attended Transfer SNMP Voice Menu for Basic Configuration
Backup and Restore System Logs IP Blocklist
Call Detail Records Hotline Remote Management

Key Features :
Attack Alert	Nat Traversal	Call Forward (Always Busy, No Answer)
3-way Conference	Do Not Disturb	Radius Accounting & Login
Blind Transfer	TR-069	Hunting Groups
Caller ID Display	Web-based Management	Call Waiting
API	Packet Capture Tool	Firewall
Attended Transfer	SNMP	Voice Menu for Basic Configuration
Backup and Restore	System Logs	IP Blocklist
Call Detail Records	Hotline	Remote Management

Technical Specifications
Technical Specification :
Main Model No. UCM200S
UCM200-DS-48
Capacity 48/72 FXS with RJ21
Ethernet Interfaces 2* LAN, Gigabit, RJ-45
Gigabit optical port 1*SFP, 1Gigabit
Console 1*RS232, 115200bps
Dimensions(W/D/H) 440*410*66mm
Unit Weight about 9kg
Voice & FAX G.711A/U law, G.723.1, G.729 A/B, AMR,iLBC
Silence Suppression
Comfort Noise Generation(CNG) Voice Activity Detection(VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer Hook Flash
Programmable Gain Control
T.38/Pass-through
High speed fax up to 14.4kbps Modem/POS
VLAN 802.1P/802.1Q
(data/voice/management VLANs) Layer3 QoS and DiffServ
Supplement Service Call Waiting Blind Transfer Attend Transfer
Call Forward on Busy
Call Forward on No Reply Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-Way Conference Message Waiting Indicator
FXS Connector: RJ21
Dial Mode: DTMF and Pulse
Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 5 km
Reversed Polarity
Programmable Call Progress Tone
Software Features Digitmap
Hunting Group Web ACL
PPPoE/IPv4/IPv6
Routing Rules based Prefixes Caller/Called Number
Manipulation
Maintenance SNMP v1/v2/v3
TR069
Auto Provisioning Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web CDR
Syslog(Emerg,alert, critical,error warning,notice,info, debug)
Ping/Tracert Test Network Capture
NTP/Daylight Saving Time
Cloud-based Management
VoIP Protocol : SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3581 NAT,rport Primary/backup SIP server Outbound
Proxy
DNS SRV/ A Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Environmental
Power Supply 100-240VAC, 50-60 Hz Power
Consumption 40W(Typical) Operating Temperature:0 °C ~ 45 °C
Storage Temperature -20 °C ~85 °C
Humidity 10%-90% Non-Condensing
Utilization Context

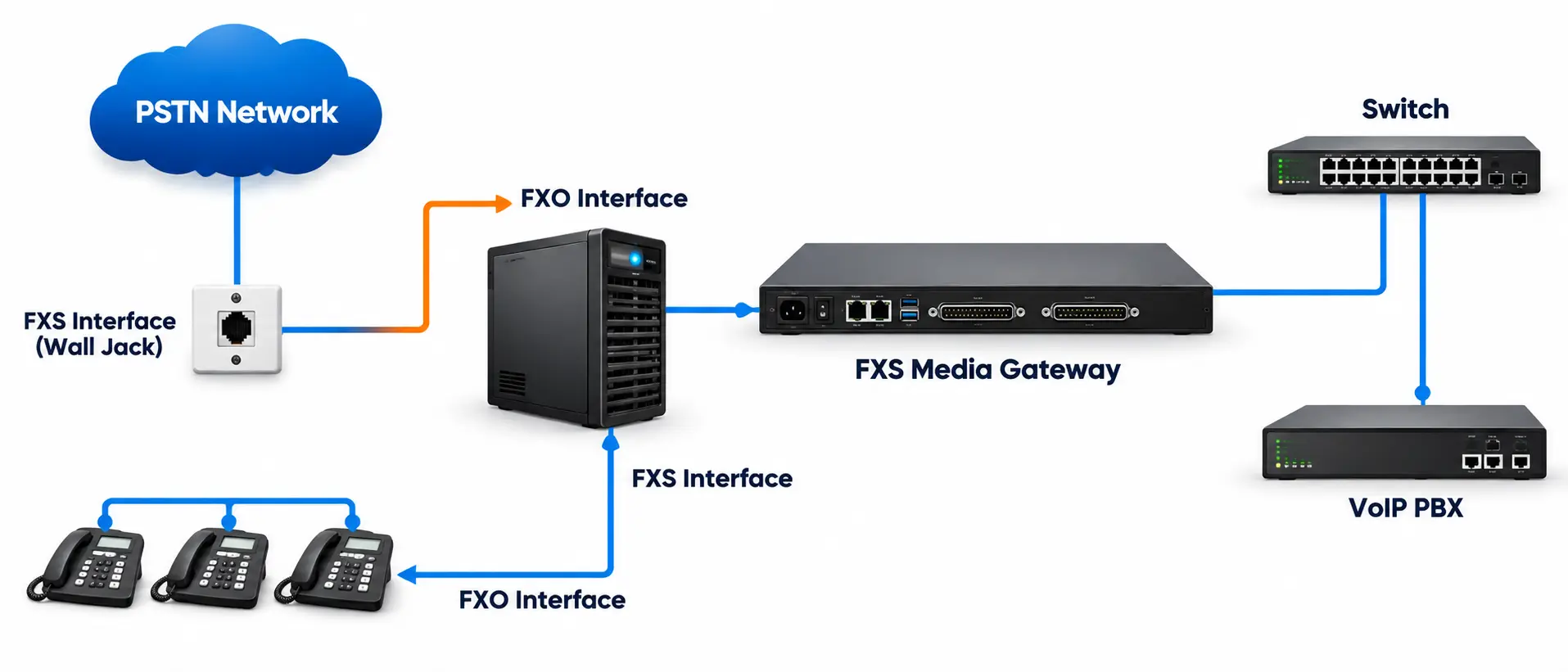

1. Analog Extensions for IP-PBX
Analog phone and fax machines can be connect directly to the FXS ports of aegis XNTEL gateway, analog telephones are enalbled to work as extensions of the IP-PBX. Businesses may use the inexpensive analog phones to connect to VoIP networks without having to spend extra money on pricey IP phones.
