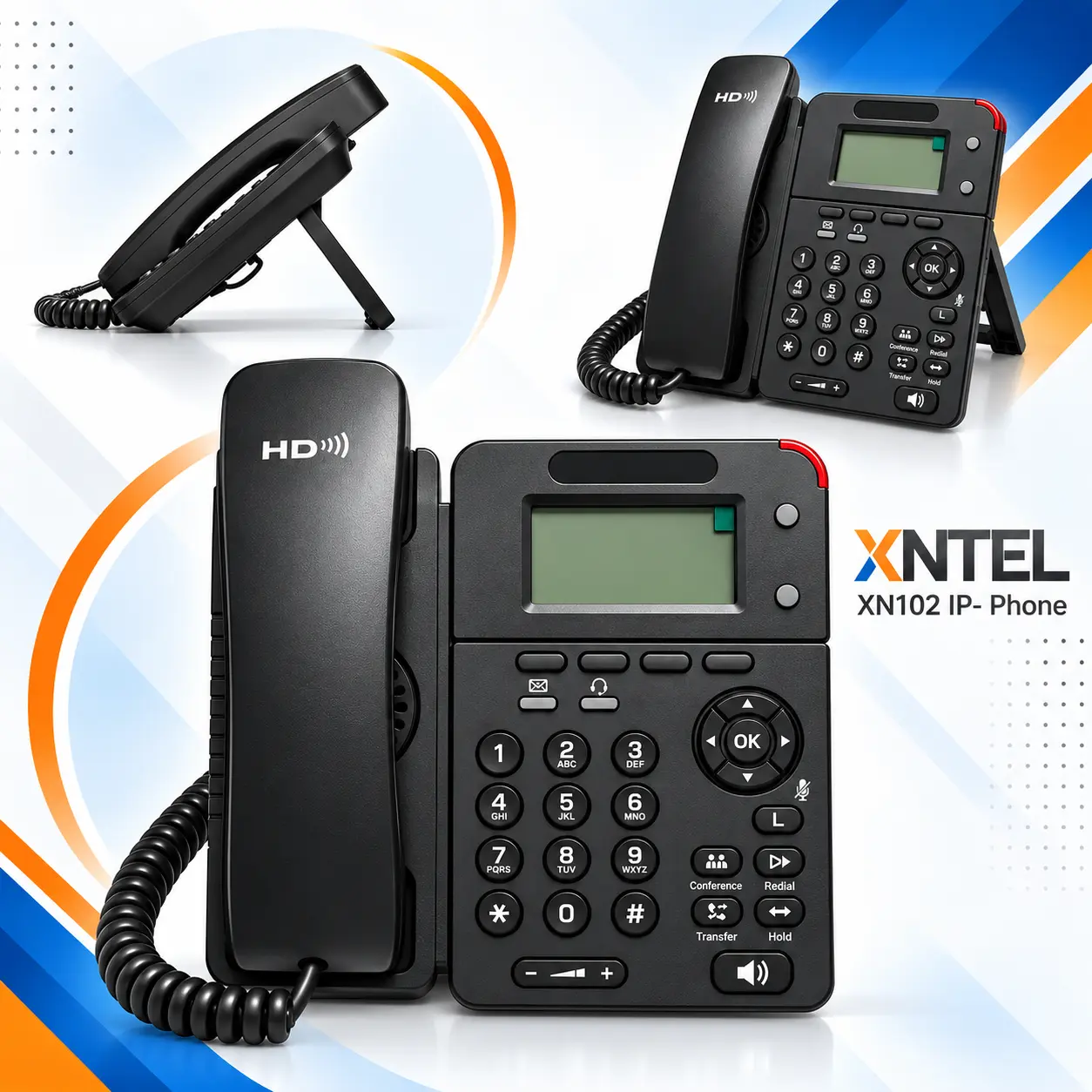

XN102 IP Phone — Designed for Professional Business Communication

The XNTEL XN102 is a professional SIP-based VoIP phone designed for reliable and efficient business communication. It combines essential calling, networking, and productivity features in a practical desktop design.

Its 2.8-inch 132 × 64-pixel backlit graphical LCD provides clear call and system information, while two SIP accounts support flexible business communication. The phone also offers three-way conferencing, call hold, transfer, forwarding, voicemail, SMS, DND, and auto-answer.

For connectivity and audio quality, the XN102 features HD voice, dual 10/100M Ethernet ports, PoE support, and an RJ9 headset interface. It also supports XML/LDAP phonebooks, BLF, IP-PBX integration, and auto-provisioning.

With desktop and wall-mount installation, the XN102 is well suited for SMEs, home offices, and ISP applications, providing a reliable communication solution for modern workplaces.

HD
Voice

2.8"
Display

2 SIP
Accounts

Multi
Language

3 Way
Conference

XNTEL XN102 IP Phone - Designed for Professional Business Communication

XNTEL XN102 is a highly innovative based SIP VoIP phone, It can perfectly satisfy with all kinds of the businessman communication. XNTEL XN102 integrates with 2.8" 132x64-pixel graphical LCD with backlight a large resolution display screen, elegant and intuitive user interface, which indicate you can enjoy perfect user experience. XNTEL XN102 offers high audio quality with a rich set of business communication features that can definitely improve working efficiency and sense. XNTEL XN102 is highly suitable for SMEs, Home Office and ISP applications.

2.8" 132*64-pixel Graphical LCD with backlight.
High audio quality: Codec, Speaker, Handset.
Multi-language: Chinese, English, French, Russian, etc.
One standard (42.5°) level bracket and wall-mountable.
Two SIP accounts and support three-way conference, SMS.
2xLAN, PoE, 1xRJ9Headset.
XML/LDAP, Contact Search.
Auto-provision, HTTP/HTTPS/TFTP/FTP.

REQUEST A QUOTE

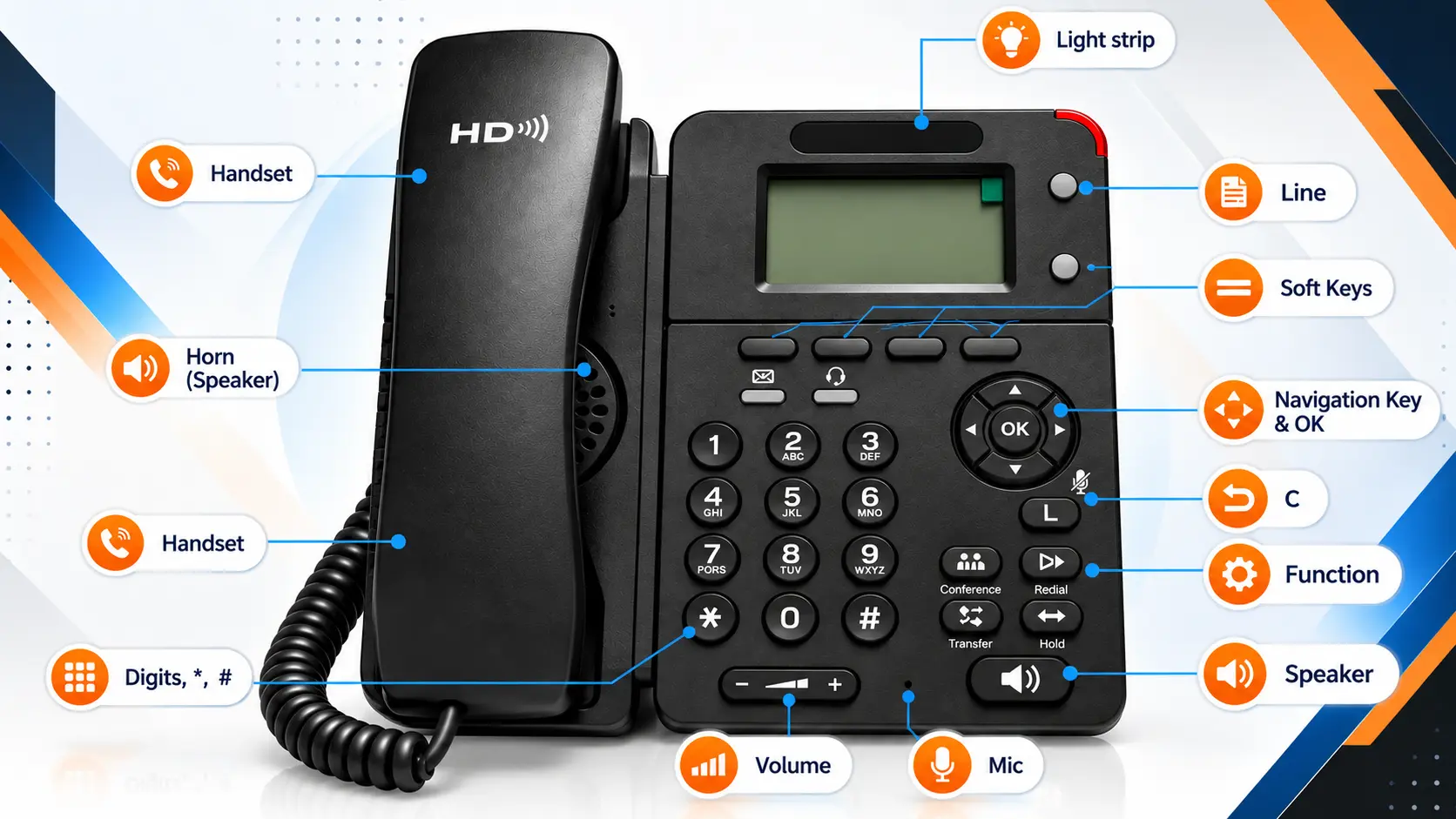

Phone User Interface

The main hardware components of the IP Phone are the LCD screen and the keypad

Hardware component instructions :

S.No.	Item	Description
1.	LCD Screen.	Displayed information about calls, messages, soft keys, time, date and other relevant data: 1. Call information — caller ID, call duration 2. Icons (e.g. DND) 3. Missed calls or second incoming caller's information 4. Time and date
2.	Light Status	Red-Flashing: There is an incoming call or be Hold. Red-Steady: Hook-off. or be in an usual conversation
3.	Line Key	Green-Steady: There is a conversation making on the line Red-Flashing: There is call coming in Green-Flashing: The line is on hold Dark: Accounts are idle
4.	Soft Key	Labels automatically to identify their context-sensitive features
5.	Navigation Key	Scroll through the displayed information, and in the idle feature: UP: Open the "All CONTACT LOG" DOWN: Open the "MISSED CALL" RIGHT: Open the "RECEIVED CALL" LEFT: Open the "DAIL CALL"
6.	OK Key	Confirm the action
7.	C Key	Cancels actions or rejects an incoming call, and the other feature: In the idle: Open the "Phone Status". Diagnosis: Press and hold 3 second to open "Hardware Diagnosis". MUTE: "MUTE" feature is enabled if you press it while the conversation making on the phone.
8.	Functions Key	`Conference\Redial\Transfer\Hold`
9.	Speaker Key	Toggles the hands-free speaker phone mode.
10.	Mc	Voice input
11.	Volume Key	Adjusts the volume of the handset, headset, speaker and ringer
12.	Keypad	Provides the digits, letters and special characters in context-sensitive applications.
13.	Handset	Voice input and output
14.	Speaker	Voice output
15.	Headset Key	Toggles and indicates the headset mode.
16.	Message Key	Indicates and accesses voice messages.

Technical Specifications - 50/50 Dual Column

Technical Specifications

Comprehensive hardware parameters, software integrations, and physical features

Phone Features	2 SIP accounts, Hotline Call hold, Call waiting, Call forward, Call return Call transfer (blind/busy/ask) Caller ID display, Redial, Mute, DND Auto-answer, 3-way conferencing Speed dial, SMS, Voicemail Message Waiting Indication LED Tone scheme, Volume control Direct IP call without SIP proxy Ring tone selection/import/delete Phonebook (local up to 1000 entries) Black list, Hand-free indicator Call history: dialed/received/missed (100 -entries); One-key back (C) Multi-Language (Hindi/English/China/Russian) Soft keys programmable, Supports PC control Support switching SIP server & Second server
Advanced Features	XML Phone Book search and input & output Enterprise phone book(2000 entries) Personal Phonebook(1000 entries) LDAP phone book Aution URL & Active URI Functions customizable keys
IP PBX System Integration	Busy lamp field (BLF), BLF list Bridged line appearance (BLA) DND & Forward synchronization Intercom, Paging, Music on hold Call pickup, Dial Plan, Call recording
Codes and Voice Features	Wideband Codec: G.722 Narrowband codec: G.711μ/A, G.726, G.729AB, iLBC VAD, CNG, AEC, AGC, Full-duplex
Security	VLAN QoS (802.1pq), SRTP Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess Secure configuration file via AES encryption Encryption for configuration file Phone lock for personal privacy protection Admin/User 2-level configuration mode, LLDP, CDP L2TP VPN tunneling protocol - added

Network Features	SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; SRTP voice encryption(RFC3711) Redundant server support NAT Traversal: STUN mode DTMF: In-Band, RFC2833, SIP Info, Auto HTTP Web Management IP Assignment: Static/DHCP/PPPoE Bridge/Router mode for PC port TFTP/DHCP/PPPoE client Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
Management	Auto-provision via FTP/TFTP/HTTP/HTTPS Configuration: browser/phone/auto-provision Trace package and system log export
Optional Features	TR069, IPv6, HTTPS web management, 802.1x, OPEN VPN
Physical Features	2.8" 132x64 graphic LCD; 33 keys including 2 programmable keys 1xRJ9 handset port 1xRJ9 headset port 2xRJ45 10/100M Ethernet ports Line keys with LED indicator: 2 LEDs for call and message waiting indication Dual-color (red or green) illuminated LEDs for line status information 42.5° bracket and wall-mountable Power adapter: AC 100~240V input and DC 5V/1A output Power over Ethernet, IEEE 802.3af, class 0 Power consumption: 1.4-2.6W Net weight: 1.02kg Dimension: 185x185x40 Operating humidity: 10~95% Storage temperature: up to 60°C
Package Features	Qty/CTN: 10 PCS N.W/CTN: 7.58kg G.W/CTN: 8.8kg Measurement: 0.068CBM(±0.5%)
Compatible with the platform	Avaya, Huawei, NEC
