UCM 200 DS – 72 Ports

ANALOG FXS GATEWAY - XNTEL – UCM200-DS -72 SERIES

High-Density Analog-to-IP Connectivity for Modern Business Communication

The XNTEL UCM200-D72S is a 72-port FXS VoIP Gateway designed to connect traditional analog phones, fax machines, and other legacy telephony devices with modern VoIP, SIP, and IP-PBX systems. It provides a scalable and reliable solution for organizations looking to integrate existing analog infrastructure into an IP-based communication environment.

With 72 sessions and 72 telephony ports, the UCM200-D32S supports SIP/TDM signaling, flexible IP-to-PSTN routing, T.38 and pass-through fax, Caller ID, call waiting, call forwarding, conference calling, hunting groups, firewall, backup and restore, and web-based management.

The gateway features RJ11, RJ21 and RJ45 interfaces, dual 10/100 Mbps LAN ports, a console port, TR-069 management, and VLAN/QoS support, making it suitable for high-density deployments across SMBs, contact centers, enterprises, and multi-branch organizations.

Advanced Search

Easy to Install

Clear
Recording

Online
Monitoring

FXS VOIP GATEWAY - XNTEL UCM200-DS-72 PORT

UCM200-DS-72 PORT - VoIP FXS Analog Gateway

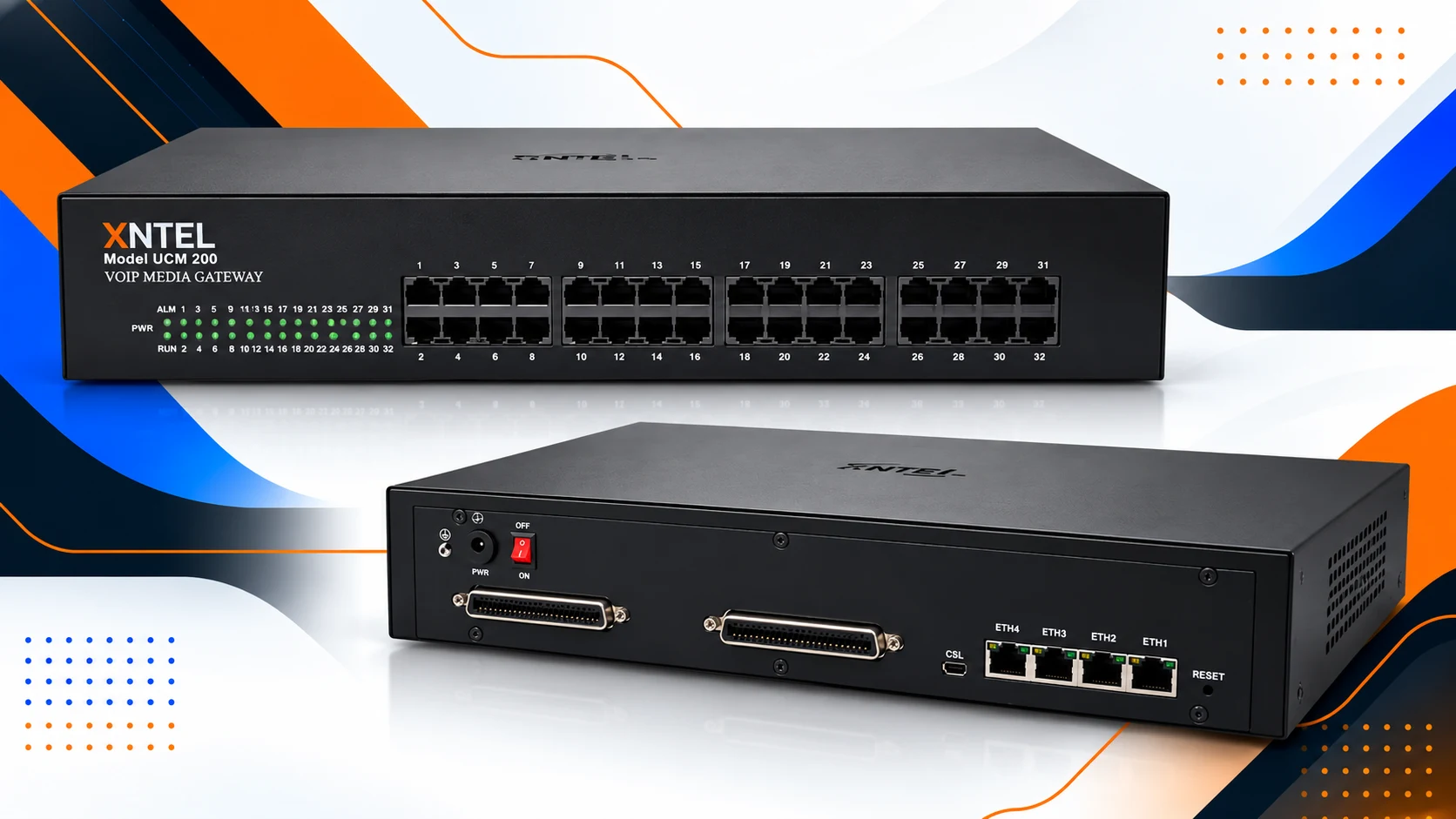

UCM200-D72S Series - VoIP FXS Analog Gateway

Easy integration with existing telephony interfaces
VoIP connectivity with high performance for SMBs
Flexible Call Routing
Fax over IP (T.38 and Pass-Through)
Support IPv4 and IPv6
Place and receive IP calls from analog extensions
Fully compliant with SIP, also features flexible calling rules.
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Cost effective gateway with 48/72 FXS ports
Easy to install, configure and maintain
Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR, etc.

REQUEST A QUOTE

ANALOG FXS GATEWAY - XNTEL UCM200-DS-72 PORT

In Asia, Aegis XNTEL is the most specialized manufacturer of sip servers. Our IP PBX phone systems can be used in a variety of situations. VoIP phone systems connect to traditional analog phones and fax machines through FXS gateways. FXO gateways extend IP PBXs' FXO ports to connect additional PSTN lines and allow call making and receiving over PSTN channels even in the case of a power or internet connectivity failure.

Aegis XNTEL offers reliable and affordably priced analog FXO-FXS VoIP gateway that will optimize your current investment in telephony infrastructure and speed up VoIP conversion by seamlessly connecting your analog phones, fax machines, and legacy PBX with IP networks and IP phone networks. One to four FXS ports and four SIP channels are among the robust gateways available in the Aegis XNTEL series' FXS VoIP Gateway UCM200S type. Furthermore, call centers and multi-branch enterprises can benefit from reliable, flexible, and affordable VoIP solutions provided by the UCM200S Series analog gateway.

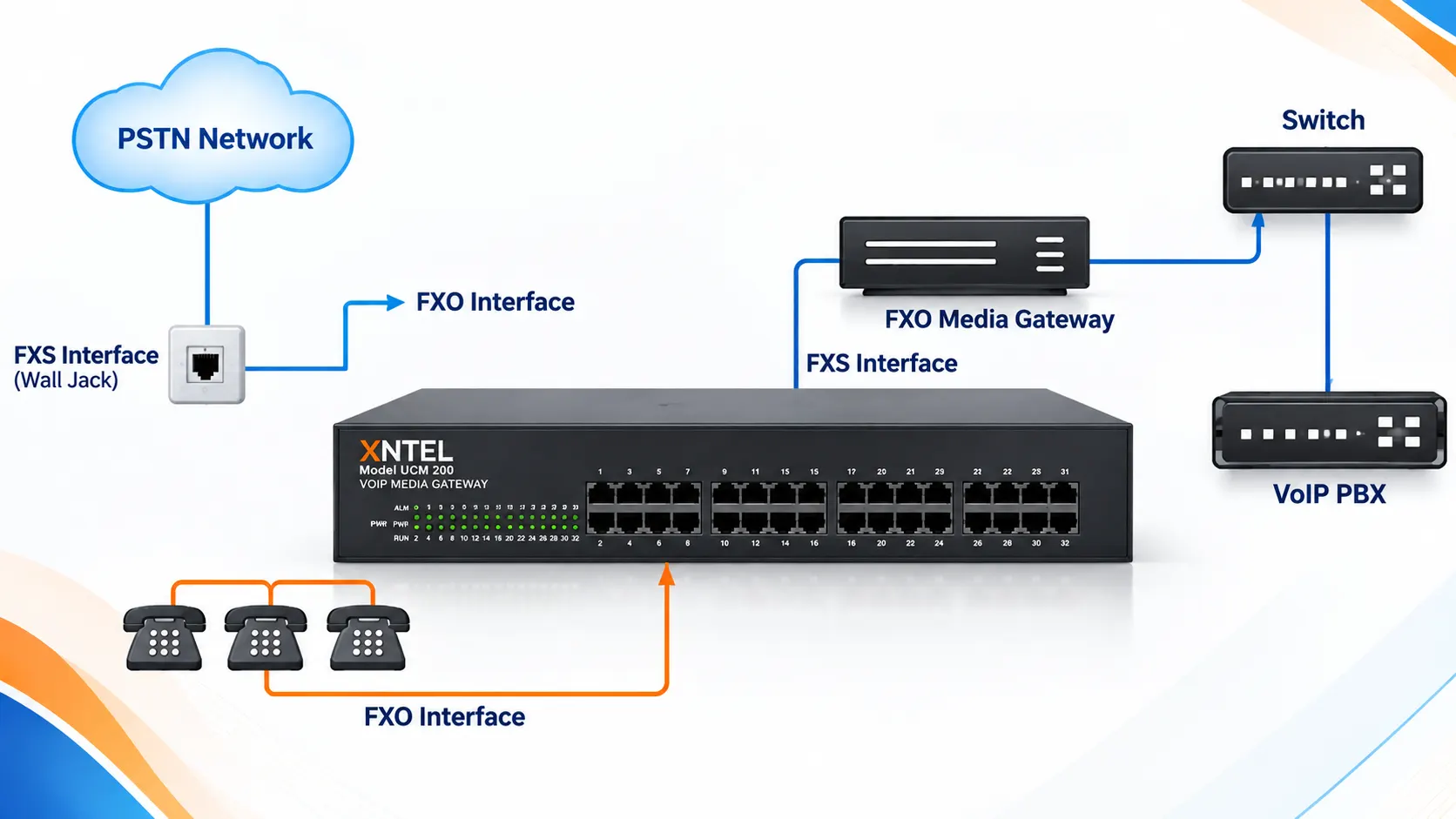

Aegis XNTEL UCM200S Series Network Architecture Diagram

FXS VoIP Gateway Key Features

Key Features :
Attack Alert	Nat Traversal	Call Forward (Always Busy, No Answer)
3-way Conference	Do Not Disturb	Radius Accounting & Login
Blind Transfer	TR-069	Hunting Groups
Caller ID Display	Web-based Management	Call Waiting
API	Packet Capture Tool	Firewall
Attended Transfer	SNMP	Voice Menu for Basic Configuration
Backup and Restore	System Logs	IP Blocklist
Call Detail Records	Hotline	Remote Management

Technical Specifications

Physical Interfaces :
Main Model No.	UCM200S
Main Model No.	UCM200-D72S
Capacity	48/72 FXS with RJ21
Ethernet Interfaces	2* LAN, Gigabit, RJ-45
Gigabit optical port	1*SFP, 1Gigabit
Console	1*RS232, 115200bps
Dimensions(W/D/H)	44041066mm
Unit Weight	about 9kg
Voice & FAX	G.711A/U law, G.723.1, G.729 A/B, AMR, iLBC
	Silence Suppression
	Comfort Noise Generation(CNG) Voice Activity Detection(VAD)
	Echo Cancellation(G.168), with up to 128ms
	Adaptive (Dynamic) Jitter Buffer Hook Flash
	Programmable Gain Control
	T.38/Pass-through
	High speed fax up to 14.4kbps Modem/POS
	VLAN 802.1P/802.1Q (data/voice/management VLANs) Layer3 QoS and DiffServ
Supplement Service	Call Waiting Blind Transfer Attend Transfer
	Call Forward on Busy
	Call Forward on No Reply Unconditional Call Forward
	Warm/Immediately Hotline
	Call Hold
	Do-not-disturb
	3-Way Conference Message Waiting Indicator
FXS	Connector: RJ21
	Dial Mode: DTMF and Pulse
	Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 5 km
	Reversed Polarity
	Programmable Call Progress Tone
Software Features	Digitmap
	Hunting Group Web ACL
	PPPoE/IPv4/IPv6
	Routing Rules based Prefixes Caller/Called Number
	Manipulation
Maintenance	SNMP v1/v2/v3
	TR069
	Auto Provisioning Web/Telnet
	Configuration Backup/Restore
	Firmware Upgrade via Web CDR
	Syslog(Emerg,alert, critical,error warning,notice,info, debug)
	Ping/Tracert Test Network Capture
	NTP/Daylight Saving Time
	Cloud-based Management
VoIP	Protocol : SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
	SIP TLS/SRTP
	RTP/RTCP, RFC2198, 1889
	RFC4028 Session Timer
	RFC3581 NAT,rport Primary/backup SIP server Outbound Proxy
	DNS SRV/ A Query
	SIP Trunk / Early Media/Early Answer
	NAT:STUN, Static/Dynamic NAT
Environmental
Power Supply	100-240VAC, 50-60 Hz Power
Consumption	40W(Typical) Operating Temperature:0 °C ~ 45 °C
Storage Temperature	-20 °C ~85 °C
Humidity	10%-90% Non-Condensing

Utilization Context

1. Analog Extensions for IP-PBX

Analog phone and fax machines can be connect directly to the FXS ports of aegis XNTEL gateway, analog telephones are enalbled to work as extensions of the IP-PBX. Businesses may use the inexpensive analog phones to connect to VoIP networks without having to spend extra money on pricey IP phones.
