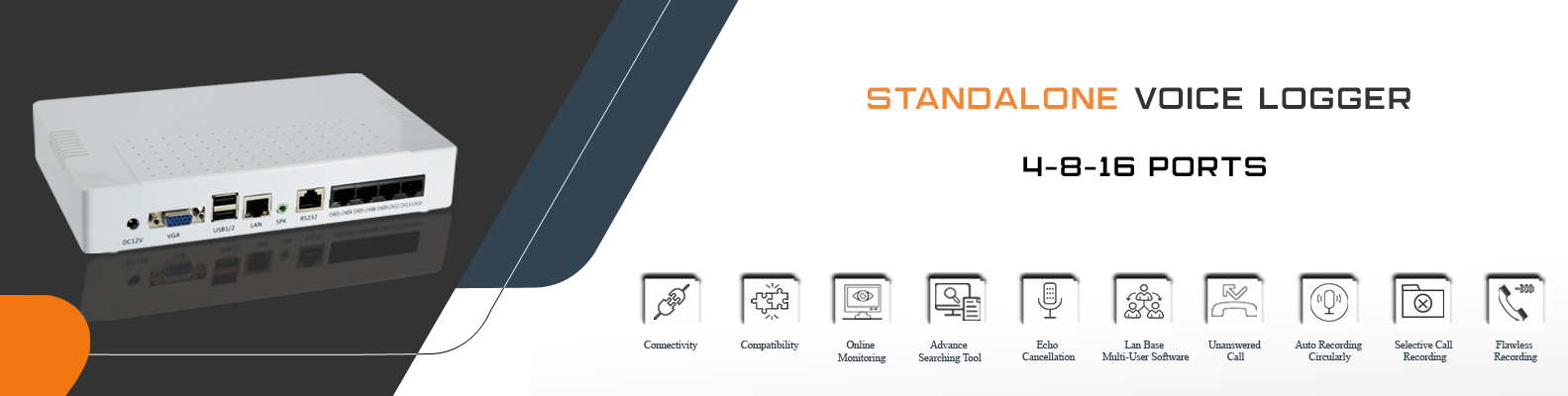

4-8-16 Ports Standalone Voice Logger with 64 GB SSD
Basic Information
Product Description
Aegis 4/8/16 Ports Embedded Voice Logger uses a sophisticated design appearance, with desktop or wall-mounted installation options, high-performance 64GB solid state drive to store data, low-power operation to save energy. With an integrated design, users can remotely manage through the network. With DC12V power port , VGA display port , USB keyboard port, mouse port , LAN network port , SPK3.5mm audio port , RS232 switch billing serial port, and recording port.Its convenient for users without computers or networks. Machine can be connected directly to run when reboot.
Embedded Voice Logger Supports Real time monitoring, Caller ID records, Log Management, 1 times compression, Unanswered Call Records, Extension Calls Records, Line AGC, CID POPUP, Department Statistics, Disconnection Alarm, Email Alarm, CMS, FTP data backup, Smart Client Management, WEB Query, Cloud storage and other functions. Supports one Client software in the LAN default (which can be added Client software quantity), just input Server IP address then can do some monitor, query operation. Simple operation, multiple permission settings, Refine management level. It can be widely used in commercial call, electric power dispatch, hotline call, complaint call, financial and stock, auto 4S shop, public security alarm, aviation, railway and transportation and so on.
Salient Features
- Monitoring people service atttitude, technology level, Examining working ability of service person, Analyzing product problem, Collecting customer's advice in order to provice with product improvement base.
- Monitoring enterprise operation and checking utilization rate of call and human resource for high rank people. Can also find action of benefit damage quickly and do some relevant measure to prevent that.Futhermore, phone recording system can make people devote themselves to work and improve working efficiency. Therefore can search new sales potential and orientation,also can provide with unexpected law proof for high rank people.
- Helping sales know well about customer's status in time and improving rate of business conclusion so that enterprise can trainsales pointedly.
- Offering evidence directly for some special occasion,also can play these information in the player.
- Offering effect evidence for other field.
- Pop up the customer detailed information.
| Basic Parts of 16 Port Standalone Voice Logger | |
|---|---|
| 1. Louver | 2. DC 12V Power Interface |
| 3. Display Interface | 4. Mouse and keyboard USB Interface |
| 5. Network Interface | 6. Headphone or Speaker Interface |
| 7. PBX SMDR Series Port | 8. Recording Channel Interface |
Advance Features
B. CMS features,apply for Cloud server and Database then can manage all the recording file in central management system.
Technical Specifications:
| Technical Parameters: | |
|---|---|
| Channel | 4ch,8ch,16ch. |
| Hard disk | 64GB SSD |
| Memory | 2GB |
| Voice file | WAV |
| Compression Ratio | 1/8 times |
| Recording Start Mode | Voltage, Key, Sound Control |
| Consume Power Maximai | 15W |
| Temperature | -20ºC-60ºC |
| SNR | 60dB |
| Humidity | 5%-85% |
| Frequency | 300-3400Hz(±3dB) |
| Input Impedance | ≥1.5MΩ |
| Data Speed | 64kbps/1s |
| Distortion Degree | ≤2% |
| Call Number | FSK, DTMF |
| FSK Concoct Mode | Logic 0(: 2200Hz±1%), Logic 1: 1200Hz±1% |
| DTMF Code | 0~9,*,#,A,B,C,D |
