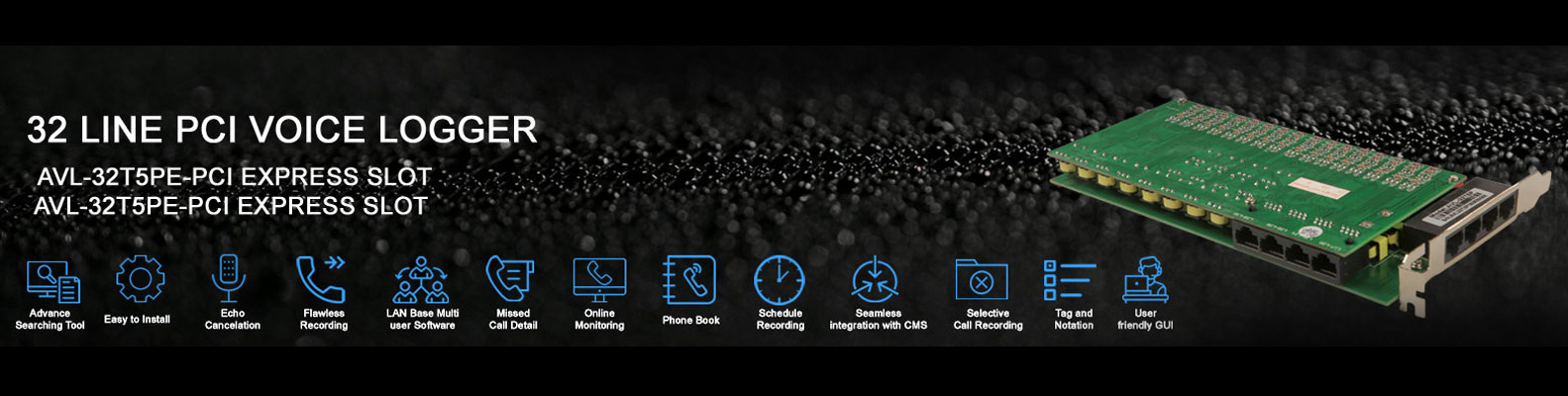

32 Line PCI voice logger
AVL-32T5PE-PCI EXPRESS SLOT
Aegis AVL-32T5PE Telephone call recorder / Voice logger allows the user to record conversations of maximum 32 Telephone lines or PBX Extensions and store the records into the computer's hard drive though PCIe Slot. This combination of hardware and software of Aegis telephone call recorder is an ideal product to keep the track of conversations, stocking up the records, filtering desired result via advanced searching tool, monitoring online calls and myriads of other features.
In addition, AVL-32T5PE voice logger simple installation procedure, Rugged hardware design , User friendly GUI and integration with centralize server makes it impeccable solution for business.
HOW AVL-32T5PE08 VOICE LOGGER CONNECT TO TELEPHONE LINE OR PBX EXTN
AVL-32T5PE Voice Logger is basically used to record calls for telephone lines/ PBX Extensions with the provision of window-based management software and this model of AVL-32T5PE telephone call recorder has the provision to record for up-to 32 lines.
Most importantly, its management software will create a stack of all the conversations into a segregated database received from PCI slot that will provide an ease to the user. In addition to this, plethora of features such as organizing database of call logs, searching desired list of calls recordings, playing the recorded calls, schedule recording, third party compatibility, and many other vitally important ones can add value to your business.
Aegis AVL-32T5PE Telephone call recorder / Voice logger allows the user to record conversations of maximum 32 Telephone lines or PBX Extensions and store the records into the computer's hard drive though PCIe Slot. This combination of hardware and software of Aegis telephone call recorder is an ideal product to keep the track of conversations, stocking up the records, filtering desired result via advanced searching tool, monitoring online calls and myriads of other features.
In addition, AVL-32T5PE voice logger simple installation procedure, Rugged hardware design , User friendly GUI and integration with centralize server makes it impeccable solution for business.
Product Features
Connectivity
Works continuously without any hinderance with POT/Analog Telephone Line/PBX Extns./Radio-Analog
Compatibility
Well consistent with the market leading PBX systems such as Cisco, Avaya, Nortel, Mitel, Panasonic, Matrix and NEC. Our call recorder can be set up to meet and expand with your needs and system.
Online Monitoring
Admin or supervisor can select any agent or extension channel to listen call conversation in real time
Powerful Search and Reporting
Pragmatic dynamic search engine to provide pertinent results on the basis of phone number, time, date, Tag, Comment and customer name through the context storage.
System Alert-Various alert notifications to avoid recording interruption
Echo Cancellation
Aegis telephone call recorder, voice logger provides an impeccable sound quality with its features like Auto gain control and auto echo cancellation.
Auto Recording Circularly
Auto recording circularly – Keep on recording without any interruption, and delete the foremost specified files when it reaches to the limit of the memory.
Unanswered Calls
Unanswered calls number if not attended
LAN Base Client Software
Aegis telephone call recorder has provision of client software it works on N Number of PC connected on LAN Network. Supporting multiple user access levels, the user interface helps super visors, and generate reports for further analysis.
Note and Flag
Tag Notation and Flag - Important calls can be flag/tag for future reference. In addition, notes remark can be added for each call record.
Recording File Format
Compressibility provision of conversation calls in .wav files to diminish the file size so that overall space of your system can be augmented.
System Alert
various alert notification to avoid recording interruption.
Call Management
USB voice logger’s management software can retrieve and present the previously stored the call logs along with their details and provides the leeway to take the print in statistical form of total incoming calls, outgoing calls, and missed calls of for further analysis.
Export to Excel
Export to Excel - Single click for daily, weekly or monthly calls report in excel
Integration With Third Party Software
Aegis voice logger have provision to integrate with most third-party database or tool. With automatic archiving and backup support you can store your voice records efficiently on any third-party database (My SQL, MS SQL, Access).
FTP Auto Back-Up
With a few easy settings, software connection will be established with server and store the data as back up option.
HOW AVL-32T5PE08 VOICE LOGGER CONNECT TO TELEPHONE LINE OR PBX EXTN

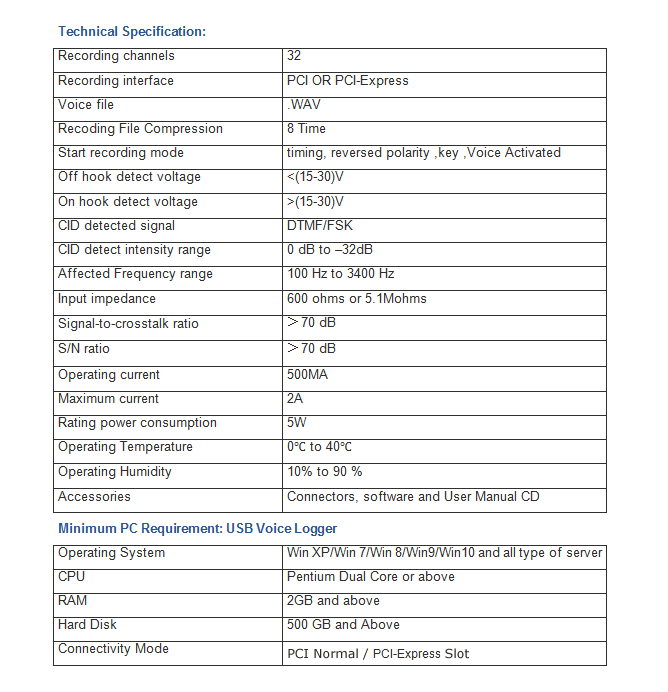

Technical Specifications:
Model No: | |
---|---|
AVL-32T5P32 | 32 Port PCI Recording Card |
Technical Parameters: | |
---|---|
Recording Interface | Express PCI Slot |
Voice File | .WAV |
Recording file compression | 8 Time |
Start Recording Mode | Timing Reversed polarity, key, voice activated |
off hook detect Voltage | <(15-30)V |
On hook detect Voltage | >(15-30)V |
Input Impedance | 600ohms or 5.1 Mohms |
Signal-to-Crosstalk ratio | >70db |
S/N ratio | >70db |
Operating Current | 500 MA |
Maximum Current | 2A |
Rating Power Consumption | 5W |
Accessories | Connectors, Software and user manual CD |
Operation Circumstance : | |
---|---|
Operation Temperature | -10~60C |
Storage Temperature | -20C~70C |
Operation Humidity | 45%-95% |
Others : | |
---|---|
Packing Box Dimensions (LXWXH) | 245mmx160mmx47mm |
Actual Weight | 300 gm |
Volumetric Weight | 600 gm |
Packaging | Standard Carton, 20PCS/ Carton |
Minimum PC Requirement :
For Single User | |
---|---|
Operating System | WinXP, Win7, Win8, Win10 & Any Server |
CPU | Dual Core & Above |
RAM | 2 GB & Above |
Harddisk | 500GB & Above |
Connectivity Mode | USB Connectivity |
For Multi User/Multi Locations : Agent Side | |
---|---|
Operating System | WinXP, Win7, Win8, Win10 & Any Server |
CPU | Dual Core & Above |
RAM | 2 GB & Above |
Harddisk | 500GB & Above |
Connectivity Mode | USB Connectivity |
For Multi User/Multi Locations : Server Side | |
---|---|
Operating System | WinXP, Win7, Win8, Win10 & Any Server |
CPU | i5 and above depend on No. of user connected |
RAM | 8GB and above depend on NO. of user connected |
Harddisk | 1 TB and above |
IP | Static IP for Multi Location Setup |
Bandwidth | Depend on Number of Multi Location users |
